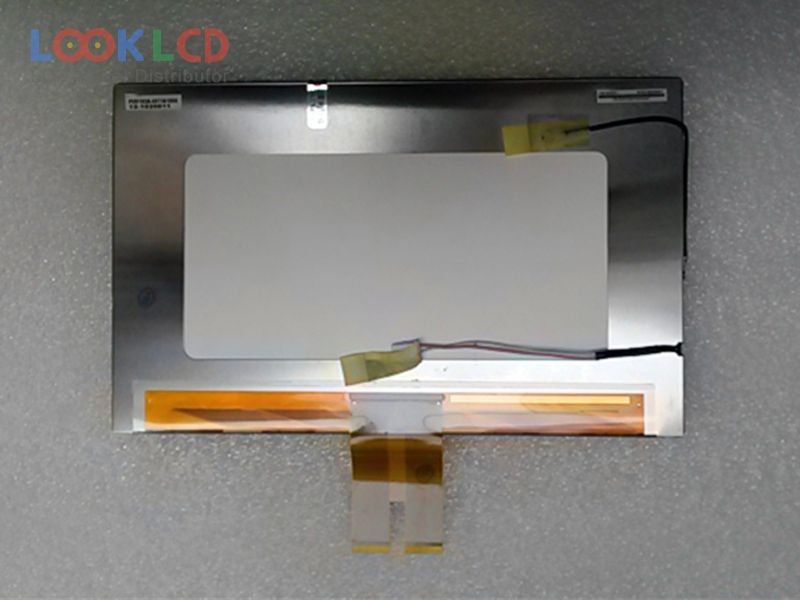

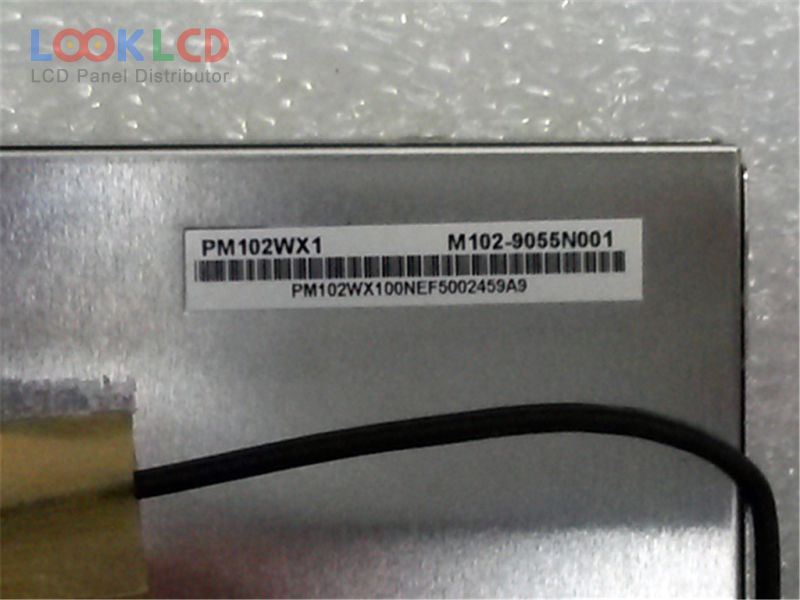

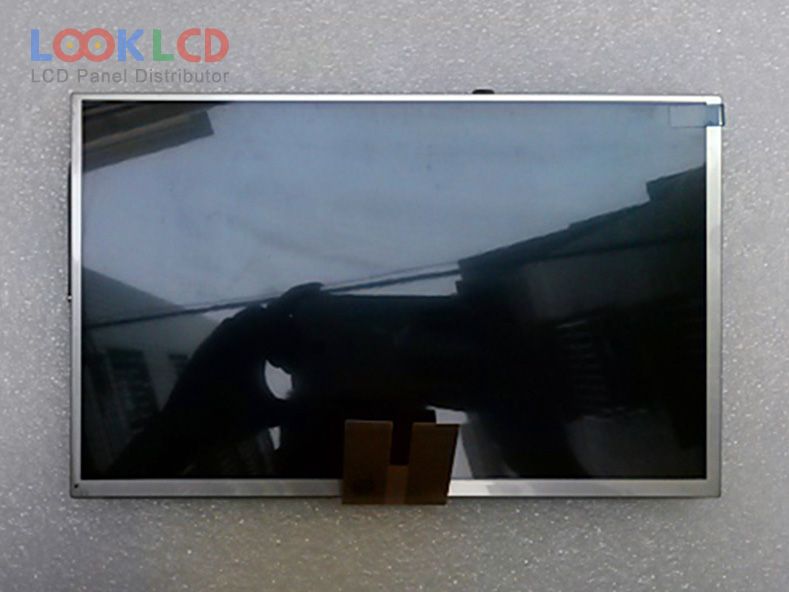

| PartNumber | PM102WX1 |
| Značka | E Ink |
| Velikost | 10.2 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | PVI |
| panelový model | PM102WX1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.2 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222×132.48 mm |
| obrys | 235×145.8×6.5 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 15/25 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/3.3/8.8/17.0/-10.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| aplikace | DPF |
| A102VW01 V7 | AUO | 10.2 | 800×480 |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA102NA1BCN | CPT | 10.2 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| PM100WX2 | E Ink | 10.0 | 800×480 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
| TX26D30VM1AAA | KOE | 10.2 | 800×256 |
| TX26D89VM2BAA | KOE | 10.2 | 800×256 |
| A104SN01 V0 | AUO | 10.4 | 800×600 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LTA070B0C0A | TOSHIBA | 7.0 | 480×234 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| PA079DS1T2 | E Ink | 7.9 | 480×234 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
