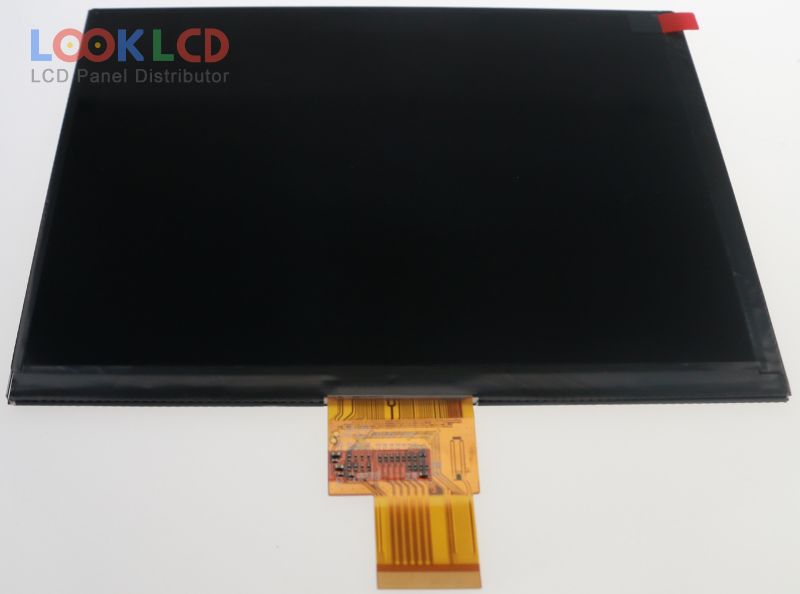

| PartNumber | HJ080IA-01F |
| Značka | Innolux |
| Velikost | 8.0 |
| aplikace | DPF |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 350 |
| CR | 800:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | HJ080IA-01F |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 162.048×121.536 mm |
| obrys | 174×136×2.65 mm |
| povrch | Hard coating |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S9PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupní napětí | 3.3/10/18.9/-7.8V (VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| B080EAN02.0 | AUO | 8.0 | 800×1280 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| HJ080IA-01B | Innolux | 8.0 | 1024×768 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LQ085Y3DG01 | SHARP | 8.5 | 800×480 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
