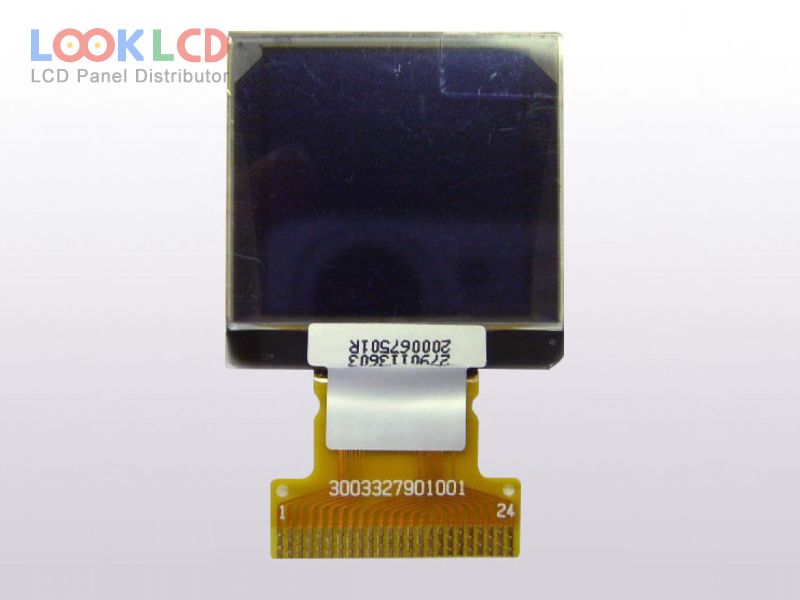

| PartNumber | RGC11096096YR000 |
| Značka | RiTdisplay |
| Velikost | 1.1 |
| aplikace | IA |
| Rozlišení | 96×96 |
| Složení | OLED |
| Jas | 80 |
| CR | 2000:1 |
| Barvy | Mono(Yellow) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | RiTdisplay |
| panelový model | RGC11096096YR000 |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.1 inch |
| rozlišení | 96×96 |
| aktivní oblast | 20.14×20.14 mm |
| obrys | 27×27×1.71 mm |
| povrch | Antiglare |
| jas | 80 cd/m² (Typ.) |
| kontrastní poměr | 2000 : 1 (Min.) |
| zobrazit barvy | Mono(Yellow) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 105Hz |
| řidič ic | COG Built-in SSD1327 |
| signálové rozhraní | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 24 pins |
| vstupní napětí | 2.5/3.5/13.0V (Typ.)(VDD/VCI/VCC) |
| aplikace | IA |
