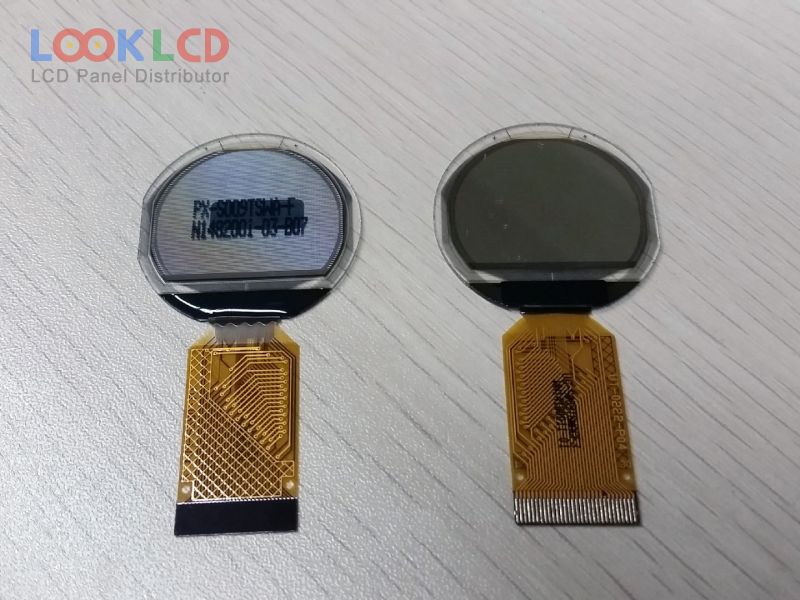

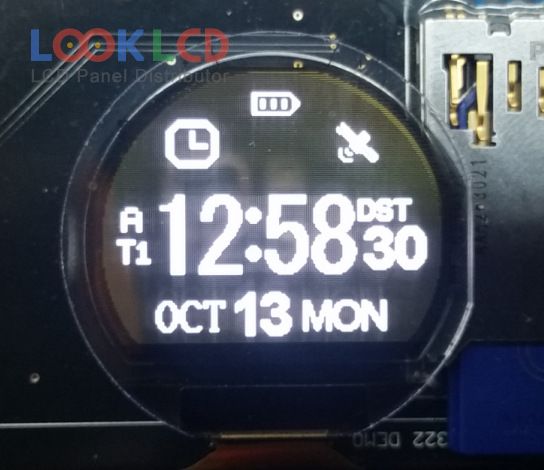

| PartNumber | UG-S009TSWAGF3 |
| Značka | WiseChip |
| Velikost | 1.1 |
| aplikace | SW |
| Rozlišení | 160×128 |
| Složení | OLED |
| Jas | |
| CR | |
| Barvy | Grayscale(W) |
| Podsvícení | self |
| Rozhraní | CPU |
| značka panelu | WiseChip |
| panelový model | UG-S009TSWAGF3 |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.1 inch |
| rozlišení | 160×128 |
| aktivní oblast | 26.86×21.484 mm |
| obrys | 32.7×62.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | Grayscale(W) (4-bit) |
| úhel pohledu | |
| signálové rozhraní | 8-bit parallel, 30 pins |
| rohs: | |
| aplikace | SW |
| H139BLN01.0 | AUO | 1.39 | 400×400 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M1007-G-E | Other | 1.1 | 96×96 |
| OEL9M1007-Y-E | Other | 1.1 | 96×96 |
| OEL9M1010-R-E | Other | 0.95 | 96×64 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
| RGS13128096WH000 | RiTdisplay | 1.3 | 128×96 |
| RGS15128128WR000 | RiTdisplay | 1.5 | 128×128 |
| UG-S009TSWAGF3 | WiseChip | 1.1 | 160×128 |
