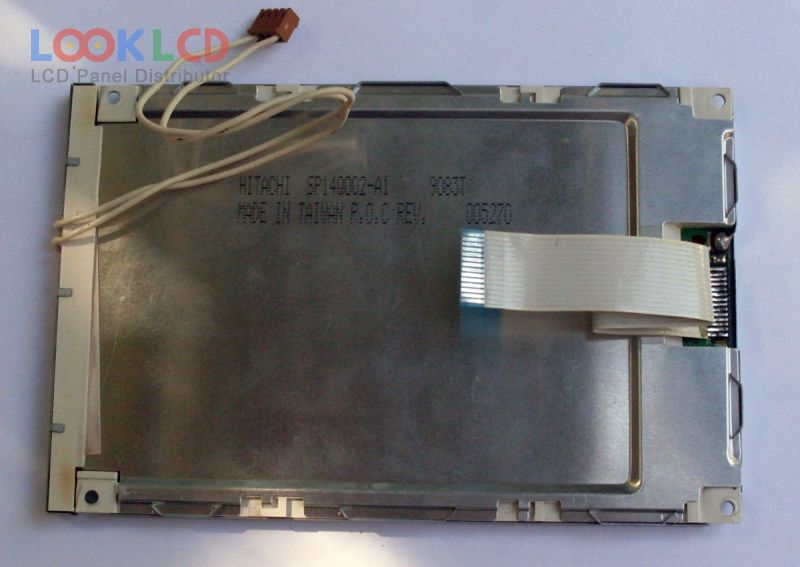

| PartNumber | SP14Q002-A1 |
| Značka | KOE |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 140 |
| CR | 25:1 |
| Barvy | Monochrome |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | HITACHI |
| panelový model | SP14Q002-A1 |
| typ panelu | FSTN-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320×240 , QVGA |
| zobrazovací mód | STN, Black/White (Negative), Transmissive |
| aktivní oblast | 115.185×86.385 mm |
| obrys | 167×109×10 mm |
| povrch | Antiglare |
| jas | 140 cd/m² (Typ.) |
| kontrastní poměr | 25:1 (Typ.) |
| zobrazit barvy | Monochrome |
| Doba odezvy | 120/150 (Typ.)(Tr/Td) |
| úhel pohledu | 40 (Typ.)(CR≥2, Φ2-Φ1)(L/R/U/D) |
| frekvence | 75Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel Data (4-bit), 14 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VDD) |
| aplikace | IA |
