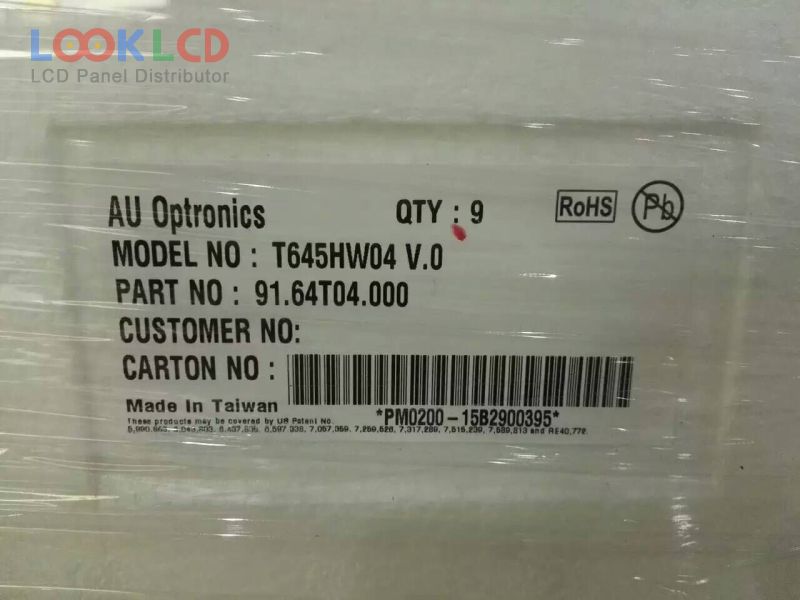

| PartNumber | T645HW04 V0 CELL |
| Značka | AUO |
| Velikost | 65 |
| aplikace | LCTV |
| Rozlišení | 1920×1080 |
| Složení | CELL |
| Jas | 0 |
| CR | 5000:1 |
| Barvy | 1.07B |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | T645HW04 V0 CELL |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 65 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | AMVA3, Normally Black, Transmissive |
| aktivní oblast | 1428.48×803.52 mm |
| obrys | 1461.98×839.24 mm |
| povrch | Hard coating, Antireflection |
| hloubka skla | 0.70+0.70 mm |
| propustnost | 4.35% (Typ.)(with Polarizer) |
| kontrastní poměr | 5000:1 (Typ.) |
| zobrazit barvy | 1.07B (10-bit), CIE193172% |
| Doba odezvy | 5.5 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (4 ch, 10-bit), 82 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
