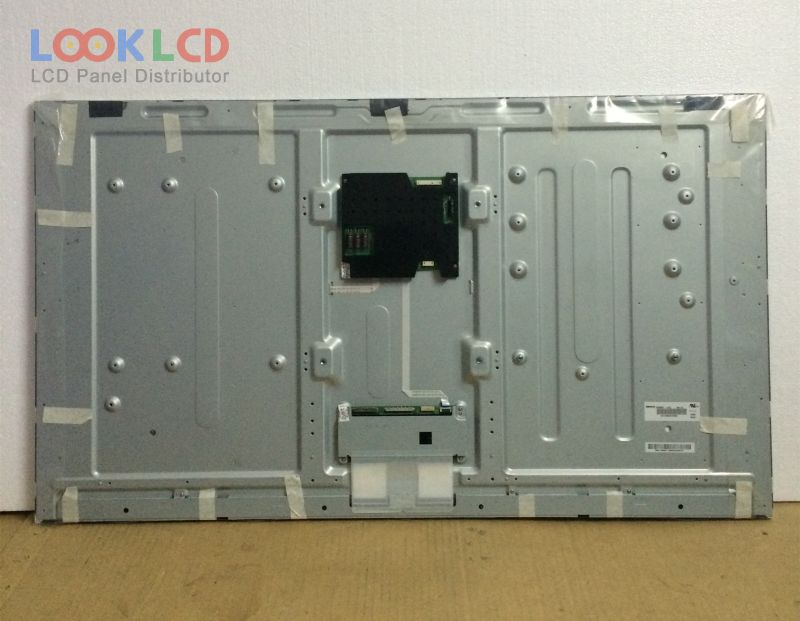

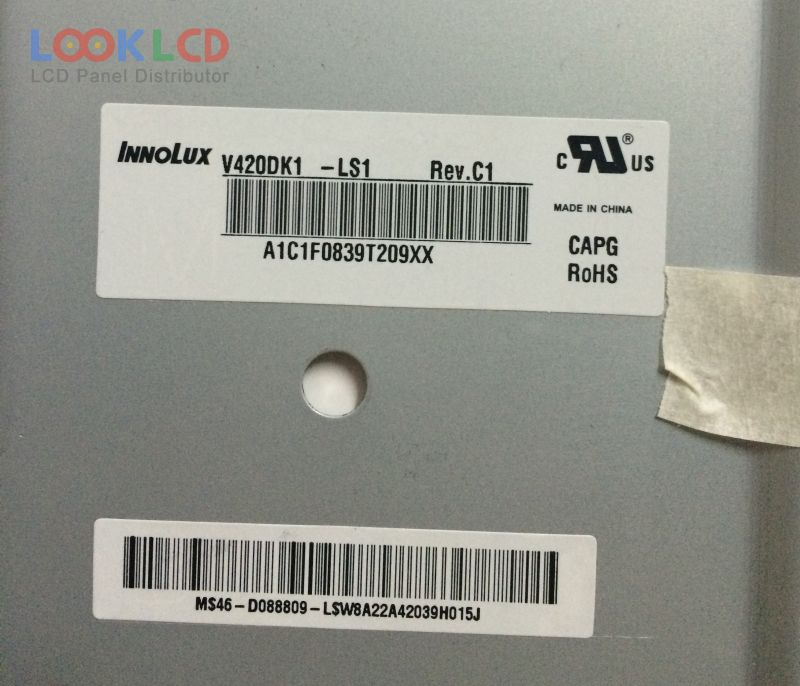

| PartNumber | V420DK1-LS1 |
| Značka | Innolux |
| Velikost | 42 |
| aplikace | LCTV |
| Rozlišení | 3840×2160 |
| Složení | LCM |
| Jas | 350 |
| CR | 5000:1 |
| Barvy | 1.07B |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | INNOLUX |
| panelový model | V420DK1-LS1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 42 inch |
| rozlišení | 3840(RGB)×2160 , UHD |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 919.296×517.104 mm |
| obrys | 936.3×538.1×26.6 mm |
| povrch | Antiglare (Haze 1%) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 5000:1 (Typ.) |
| zobrazit barvy | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 6.5 (Typ.)(G to G) |
| úhel pohledu | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvence | 120Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (4 ch, 10-bit), 92 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
