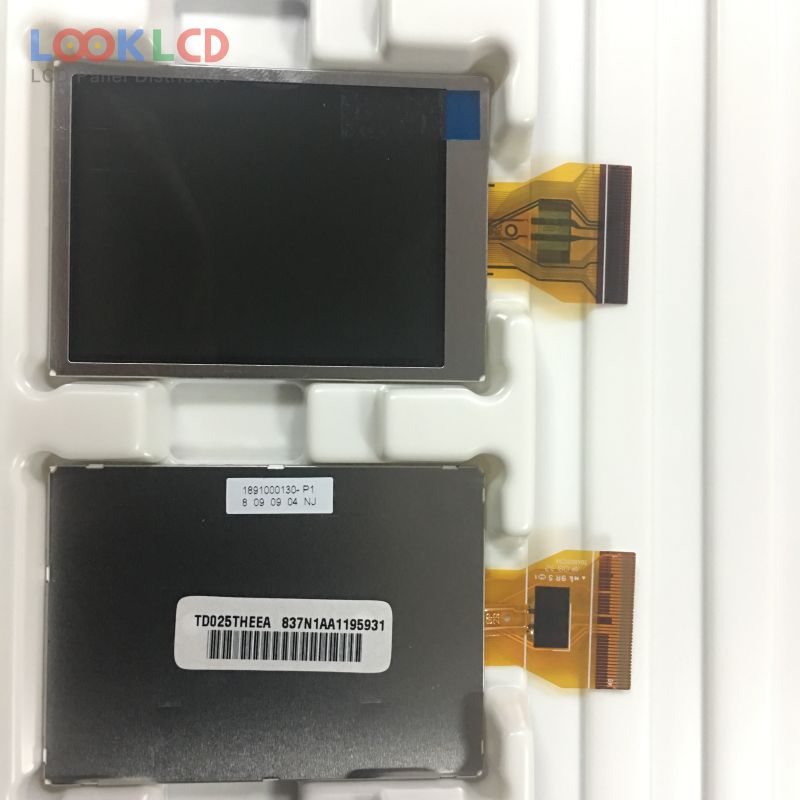

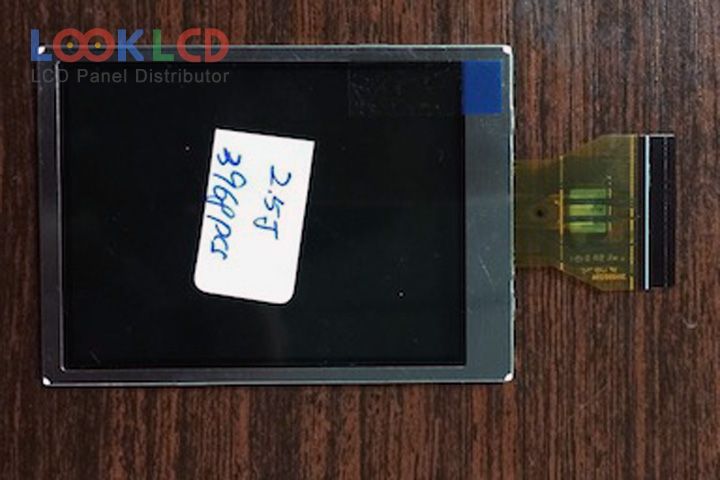

| PartNumber | TD025THEEA |
| Značka | TPO |
| Velikost | 2.5 |
| aplikace | DSC |
| Rozlišení | 640×240 |
| Složení | LCM |
| Jas | 250 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Serial RGB |
| značka panelu | TPO |
| panelový model | TD025THEEA |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 2.5 inch |
| rozlišení | 640×240 , HVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 50.28×37.8 mm |
| obrys | 61.7×44.5×2.98 mm |
| povrch | Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 13/22 (Typ.)(Tr/Td) |
| úhel pohledu | 40/40/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2S1PWLEDWithout Driver |
| signálové rozhraní | Serial RGB (8-bit) + SPI, CCIR601, 40 pins |
| vstupní napětí | 3.0V (Typ.) |
| aplikace | DSC |
| 990000270 | TPO | 2.5 | 320×240 |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| LMS250GF01 | Samsung | 2.5 | |
| LTV250QV-F0A | Samsung | 2.5 | 320×240 |
| TD025THEA3 | TPO | 2.5 | 320×240 |
| TD025THEB5 | TPO | 2.5 | 320×240 |
| TD025THED2 | TPO | 2.5 | 320×240 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| TD025THEEA | TPO | 2.5 | 640×240 |
| TD025THEG1 | TPO | 2.5 | 320×240 |
| A025DN01 V9 | AUO | 2.5 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A030DN01 VC | AUO | 3.0 | 320×240 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| ACX318ELN | SONY | 1.5 | 490×240(dot) |
| DLC0350CZG-T | Other | 3.5 | 320×240 |
| LMS350GF07-005 | Samsung | 3.5 | 320×240 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
