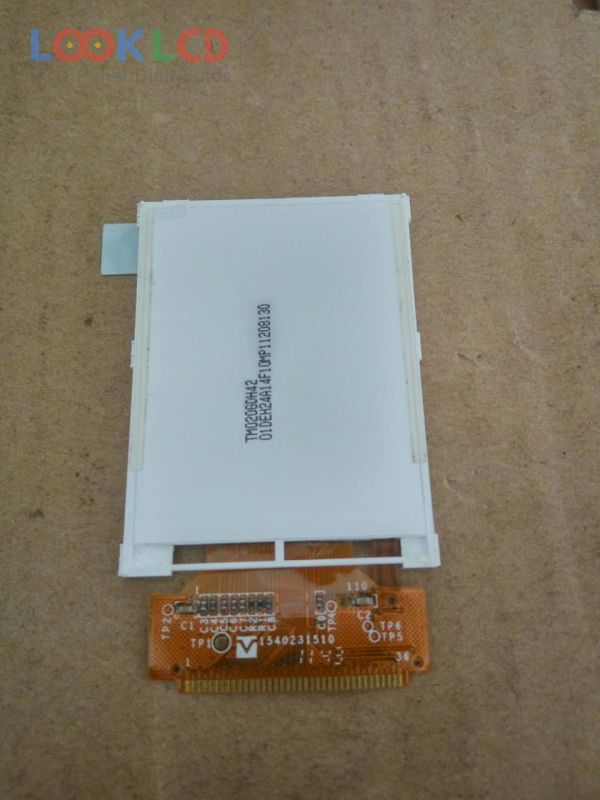

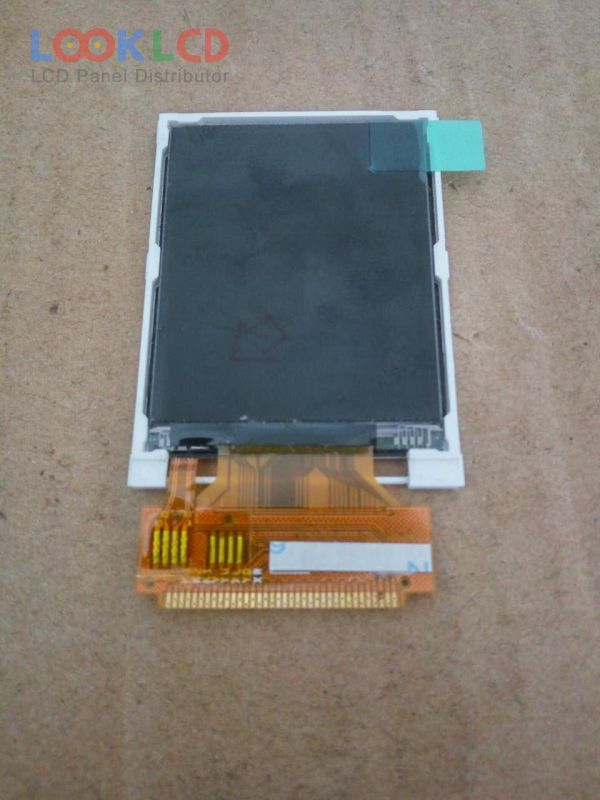

| PartNumber | TM020GDH42 |
| Značka | Tianma |
| Velikost | 2.0 |
| aplikace | MPH |
| Rozlišení | 176×220 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | 65K/262K |
| Podsvícení | WLED |
| Rozhraní | |
| značka panelu | TIANMA |
| panelový model | TM020GDH42 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 2.0 inch |
| rozlišení | 176(RGB)×220 , QCIF+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 31.68×39.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | 65K/262K , CIE193160% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLEDWithout Driver |
| aplikace | MPH |
