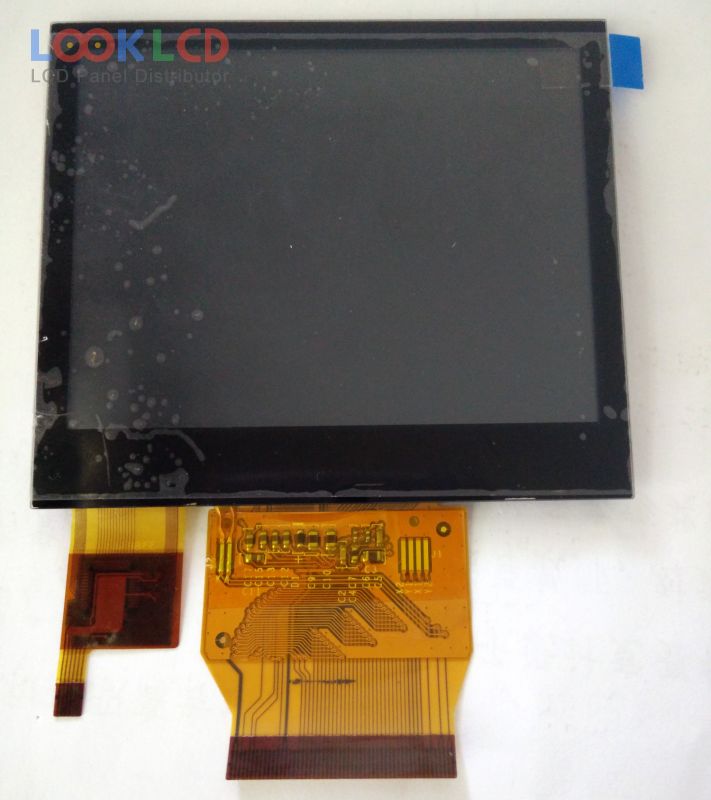

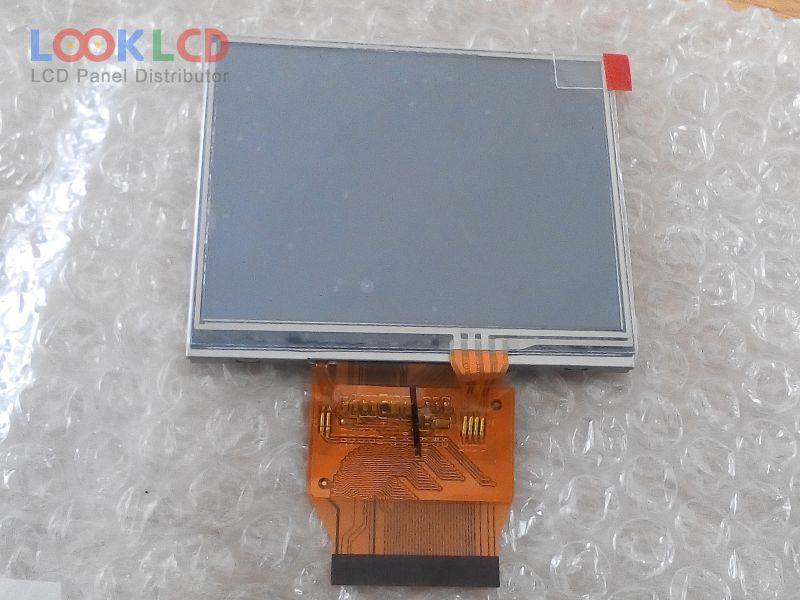

| PartNumber | TM035KBH02 |
| Značka | Tianma |
| Velikost | 3.5 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Parallel/Serial |
| značka panelu | TIANMA |
| panelový model | TM035KBH02 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 70.08×52.56 mm |
| obrys | 76.9×63.9×4.2 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Dithering), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | DSC |
