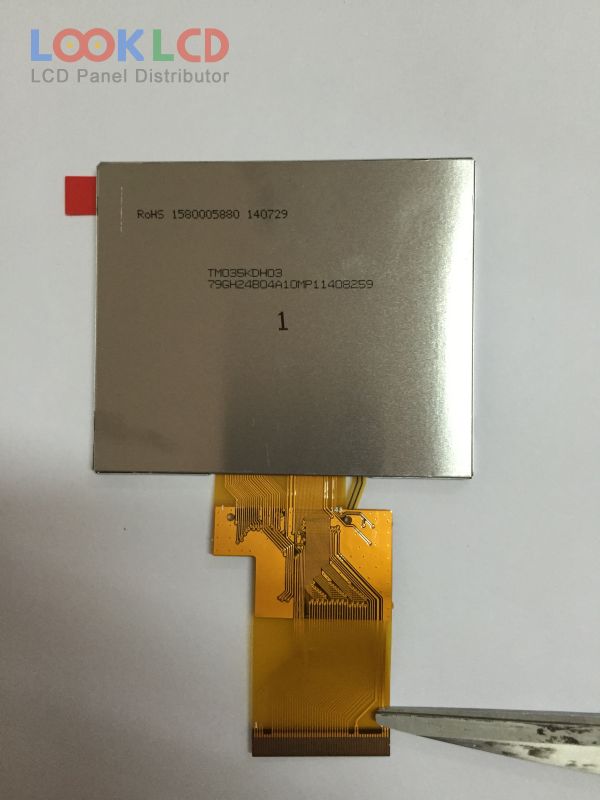

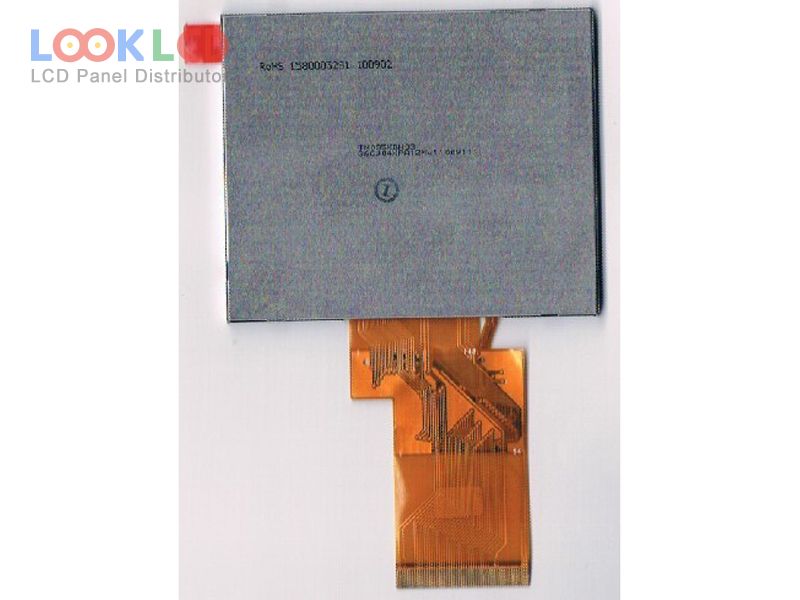

| PartNumber | TM035KDH03 |
| Značka | Tianma |
| Velikost | 3.5 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 300 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Parallel/Serial |
| značka panelu | TIANMA |
| panelový model | TM035KDH03 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 70.08×52.56 mm |
| obrys | 76.9×63.9×3.35 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | DSC |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A027DN01 VB | AUO | 2.7 | 320×240 |
| A027DN03 V5 | AUO | 2.7 | 320×240 |
| A030JTN01.1 | AUO | 3.0 | 960×480(dot) |
| CT025TN01 | Innolux | 2.5 | 320×240 |
| LTV250QV-F0A | Samsung | 2.5 | 320×240 |
| LTV350QV-F09 | Samsung | 3.5 | 320×240 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TD025THEEA | TPO | 2.5 | 640×240 |
