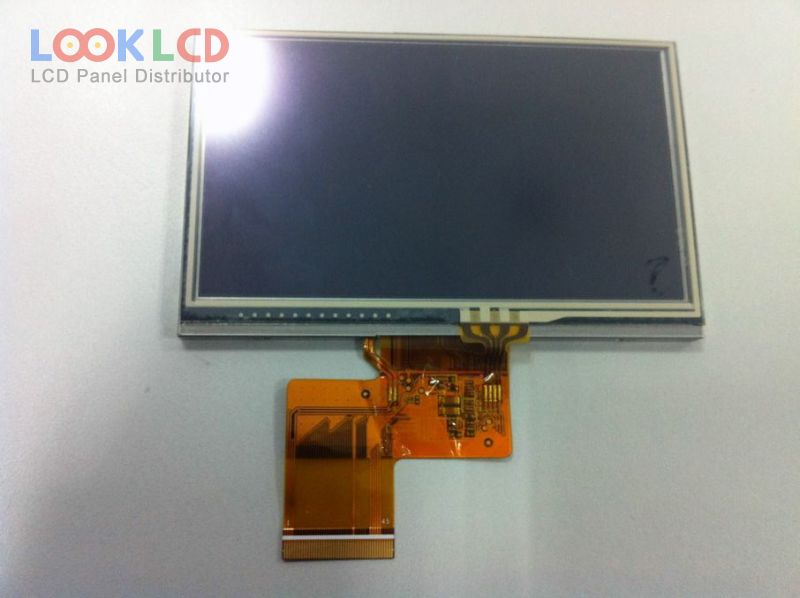

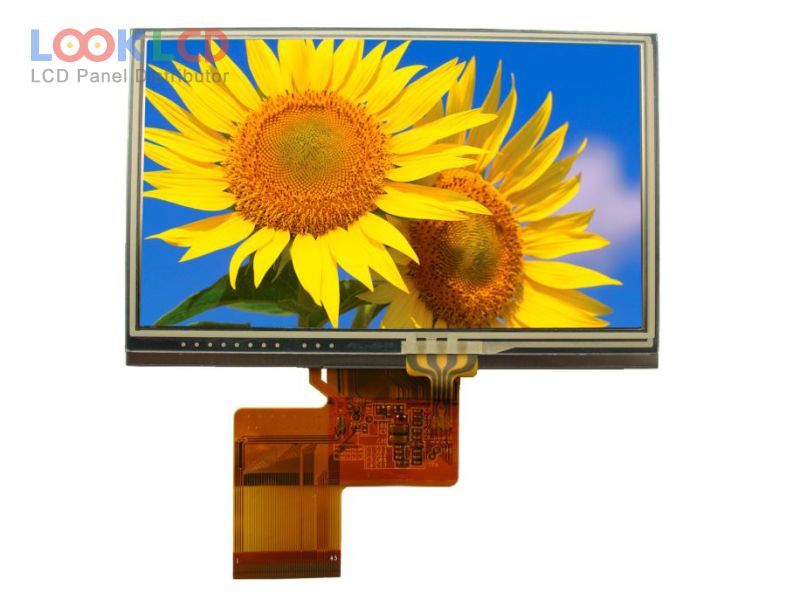

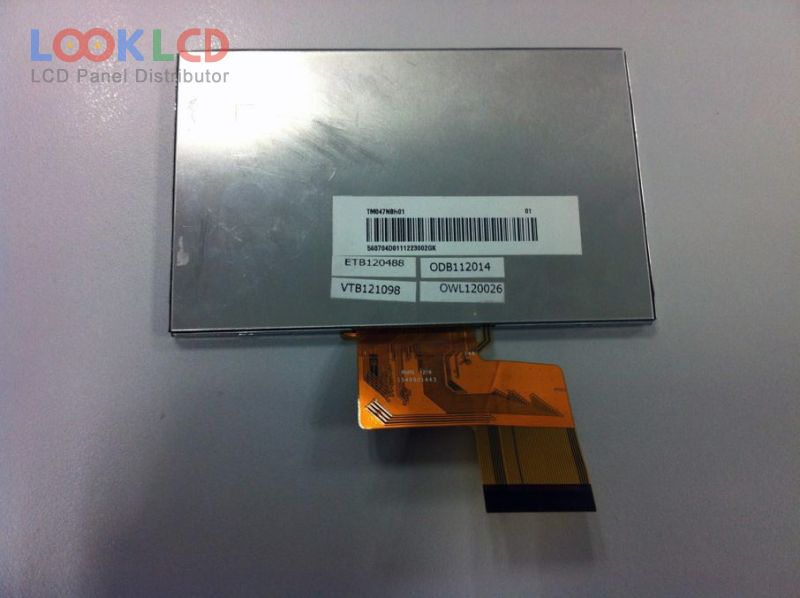

| PartNumber | TM047NBH01 |
| Značka | Tianma |
| Velikost | 4.7 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 280 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TIANMA |
| panelový model | TM047NBH01 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.7 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 103.68×58.752 mm |
| obrys | 114.3×72.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 280 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PND |
