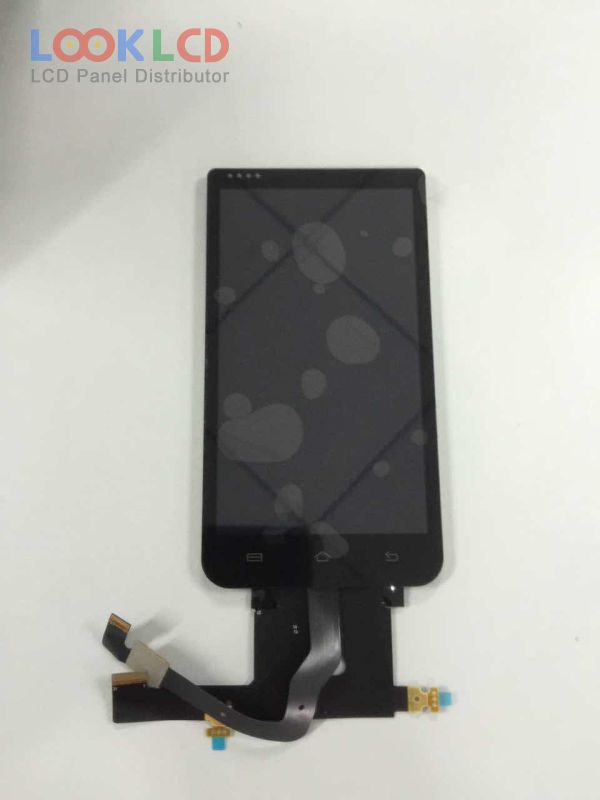

| PartNumber | TM050JVZG28 |
| Značka | Tianma |
| Velikost | 5.0 |
| aplikace | MPH |
| Rozlišení | 720×1280 |
| Složení | Assembly |
| Jas | 300 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | TIANMA |
| panelový model | TM050JVZG28 |
| typ panelu | a-Si TFT-LCD , Assembly |
| velikost panelu | 5.0 inch |
| rozlišení | 720(RGB)×1280 , WXGA |
| aktivní oblast | 62.9×110.4 mm |
| obrys | 71.1×132.85 mm |
| povrch | |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| signálové rozhraní | MIPI (4 data lanes), 31 pins |
| vstupní napětí | 1.8/2.8V (Typ.)(IOVCC/VCI) |
| aplikace | MPH |
