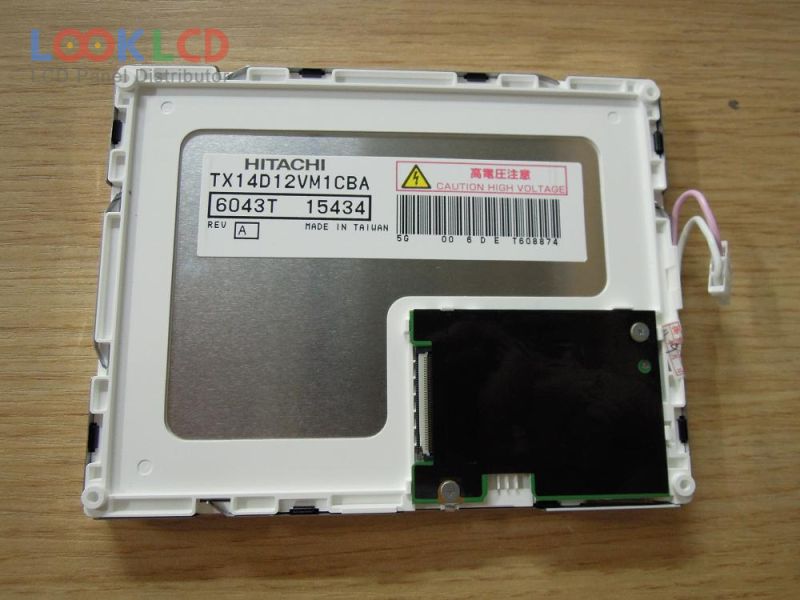

| PartNumber | TX14D12VM1CBA |
| Značka | KOE |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 350 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | HITACHI |
| panelový model | TX14D12VM1CBA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 131×102.2 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 45 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | IA |
