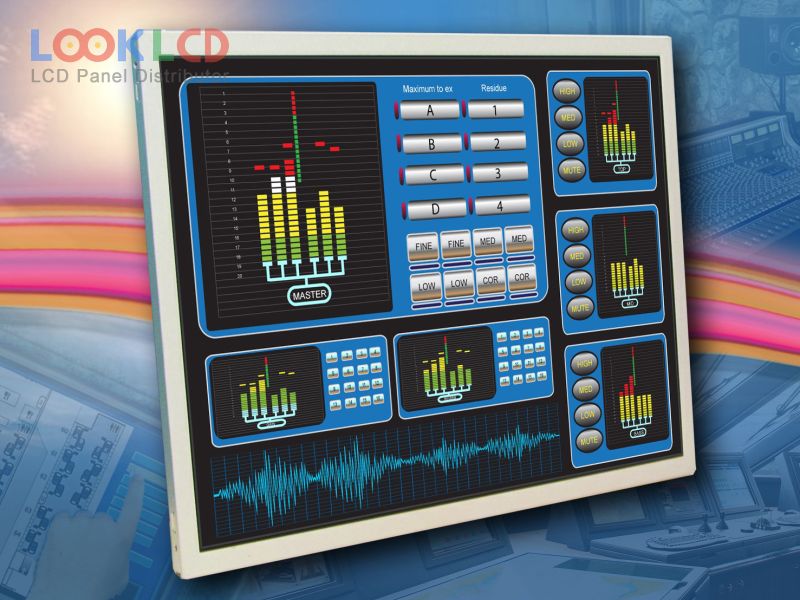

| PartNumber | TX31D37VM0CAA |
| Značka | KOE |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 600 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HITACHI |
| panelový model | TX31D37VM0CAA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | IPS Pro, Normally Black, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 280×210×13.08 mm |
| povrch | |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S8PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
