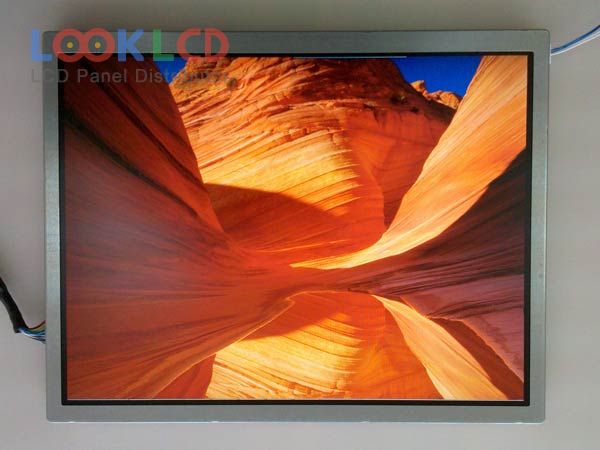

| PartNumber | AA104XD02 |
| Značka | Mitsubishi |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 600 |
| CR | 700:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | Mitsubishi |
| panelový model | AA104XD02 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 210.4×157.8 mm |
| obrys | 230×180.2×11 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Doba odezvy | 4/12 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 stringsWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA104VC10 | Mitsubishi | 10.4 | 640×480 |
| AA104VH01 | Mitsubishi | 10.4 | 640×480 |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12--G1 | Mitsubishi | 10.4 | 1024×768 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| AA10SA6C-ADDD | Mitsubishi | 10.4 | 800×600 |
| AG-320240A4FIQW-K9H-S(N)(R) | AMPIRE | 5.7 | 320×240 |
| EL240.128.45 CC | Lumineq | 4.8 | 240×128 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| EL640.400-CB1 | Lumineq | 9.1 | 640×400 |
| G321DX5R1AC | SII | 6.3 | 320×200 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| KHB065HV1BD-M10 | Kyocera | 6.5 | 640×240 |
| LQ084V1DG22 | SHARP | 8.4 | 640×480 |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
