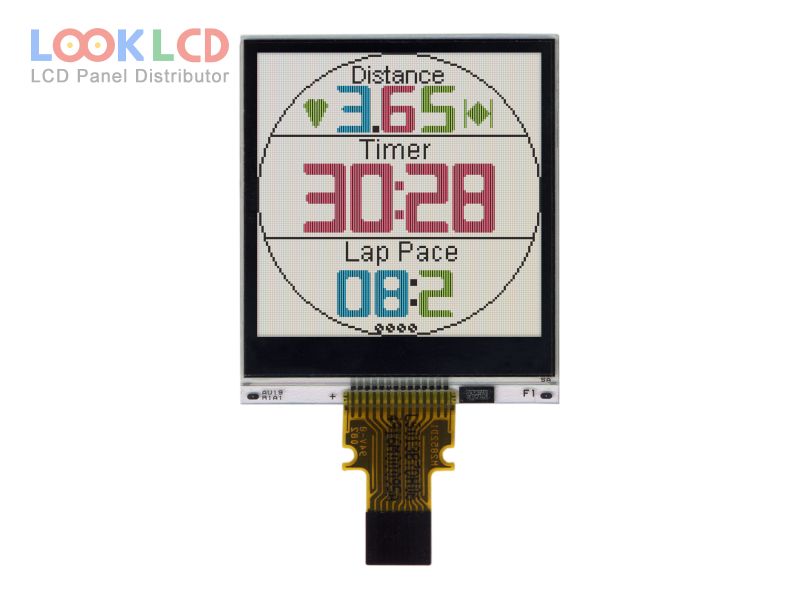

| PartNumber | LS013B7DH06 |
| Značka | SHARP |
| Velikost | 1.33 |
| aplikace | SW |
| Rozlišení | 128×128 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | 8 |
| Podsvícení | No B/L |
| Rozhraní | SPI |
| značka panelu | SHARP |
| panelový model | LS013B7DH06 |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 1.33 inch |
| rozlišení | 128(RGB)×128 |
| zobrazovací mód | Transflective |
| aktivní oblast | 23.808×23.808 mm |
| obrys | 26.82×31.3×0.85 mm |
| povrch | Hard coating (3H) |
| jas | |
| kontrastní poměr | 25:1 (Typ.)(Reflective) |
| zobrazit barvy | 8 (1-bit), CIE19316% |
| Doba odezvy | 10/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/60/60 (Typ.)(CR≥2)(L/R/U/D) |
| typ lampy | No B/L |
| signálové rozhraní | SPI, 10 pins |
| vstupní napětí | 5.0/5.0/3.0V (Typ.)(VDDA/VDD/VIH) |
| aplikace | SW |
