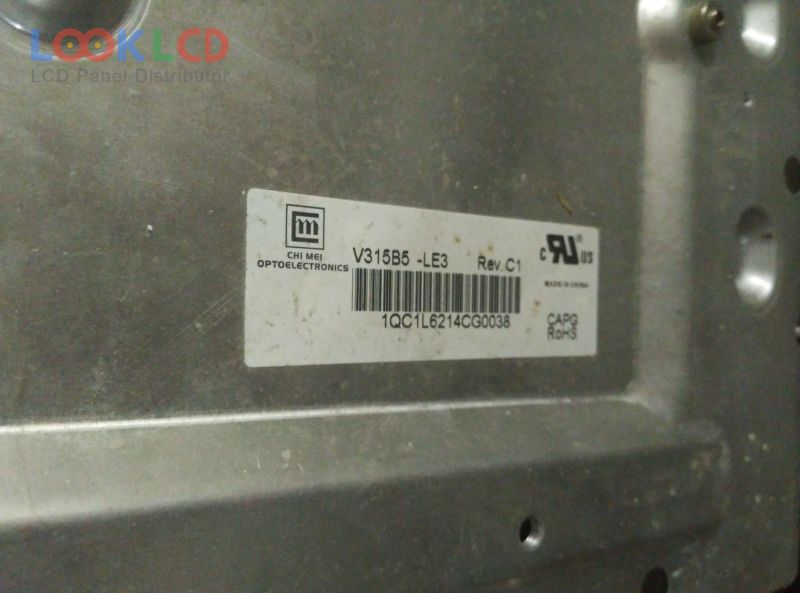

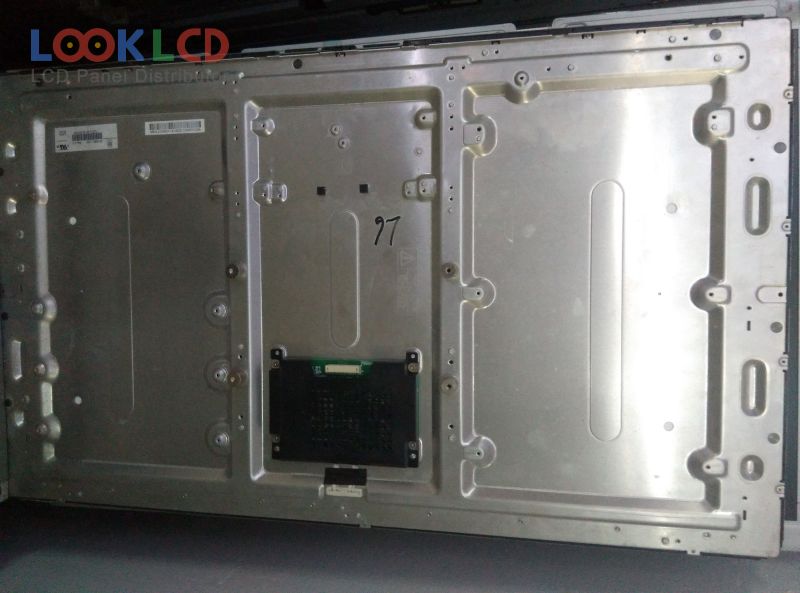

| PartNumber | V315B5-LE3 |
| Značka | Innolux |
| Velikost | 31.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 400 |
| CR | 5000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | V315B5-LE3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 31.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 697.685×392.256 mm |
| obrys | 735.4×433 mm |
| povrch | Antiglare (Haze 11%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 5000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 8.5 (Typ.)(Tr+Td) |
| úhel pohledu | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
