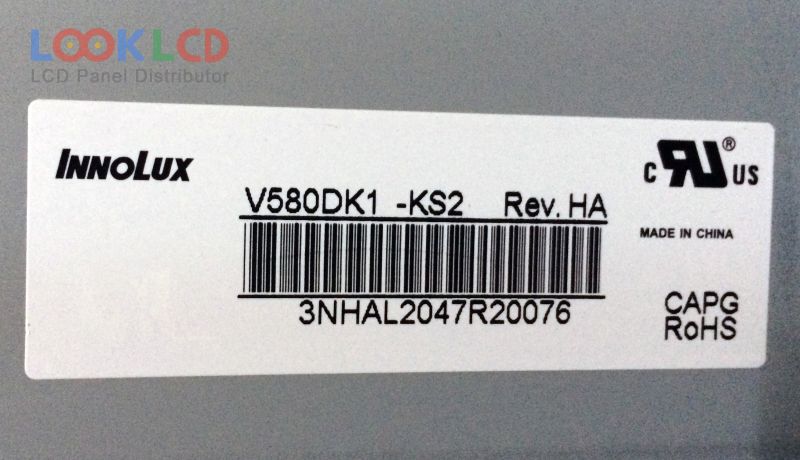

| PartNumber | V580DK1-KS2 |
| Značka | Innolux |
| Velikost | 58 |
| aplikace | LCTV |
| Rozlišení | 3840×2160 |
| Složení | LCM |
| Jas | 360 |
| CR | 3000:1 |
| Barvy | 1.07B |
| Podsvícení | WLED |
| Rozhraní | V-by-One |
| značka panelu | CHIMEI INNOLUX |
| panelový model | V580DK1-KS2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 58 inch |
| rozlišení | 3840(RGB)×2160 , UHD |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 1270.08×721.44 mm |
| obrys | 1290.3×744.7×28.6 mm |
| povrch | Antiglare (Haze 1%), Hard coating (3H) |
| jas | 360 cd/m² (Typ.) |
| kontrastní poměr | 3000:1 (Typ.) |
| zobrazit barvy | 1.07B (8-bit + Hi-FRC) |
| Doba odezvy | 6.5 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 120Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | V-by-One 16 lane, 97 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
