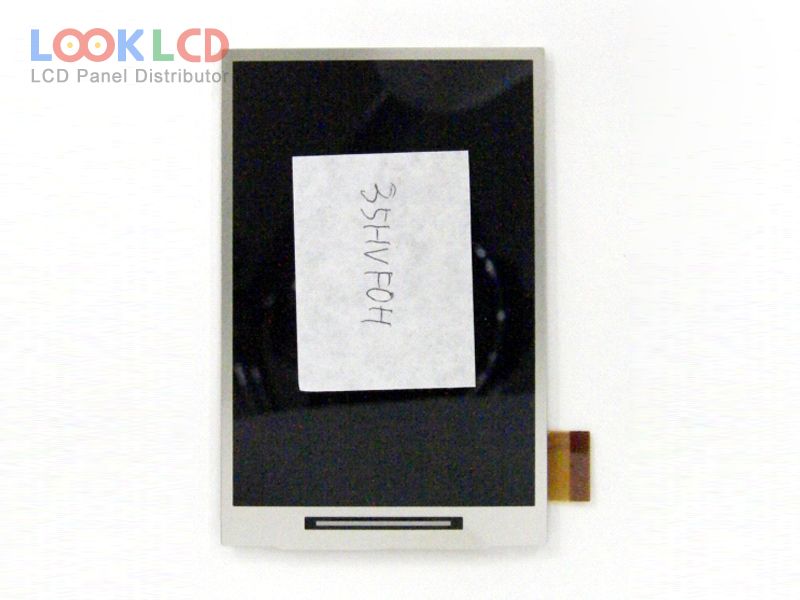

| PartNumber | 35HVF0H |
| Značka | SII |
| Velikost | 3.5 |
| aplikace | PND |
| Rozlišení | 320×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SII |
| panelový model | 35HVF0H |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×480 , HVGA |
| zobrazovací mód | FFS, Normally Black, Transmissive |
| aktivní oblast | 49.44×74.16 mm |
| obrys | 55.34×84.55×2.28 mm |
| povrch | Clear, Hard coating |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193170% |
| Doba odezvy | 40 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| aplikace | PND |
