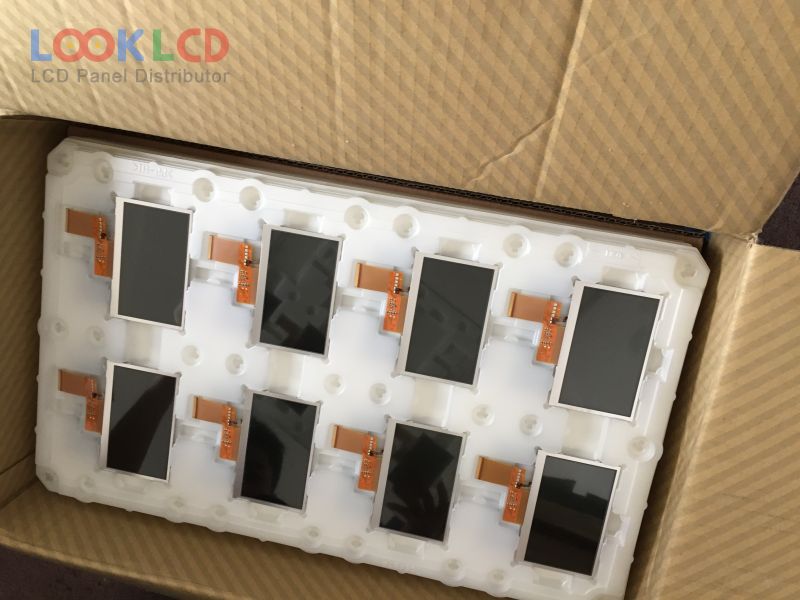

| PartNumber | LQ043T1DG04 |
| Značka | SHARP |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ043T1DG04 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480×272(RGB) , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 8/20 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 9S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCI) |
| aplikace | PND |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| 35HVF0H | SII | 3.5 | 320×480 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| DLC0430LZG | Other | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LQ036T1DG01 | SHARP | 3.6 | 272×480 |
| LQ036T1DG01C | SHARP | 3.6 | 272×480 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
