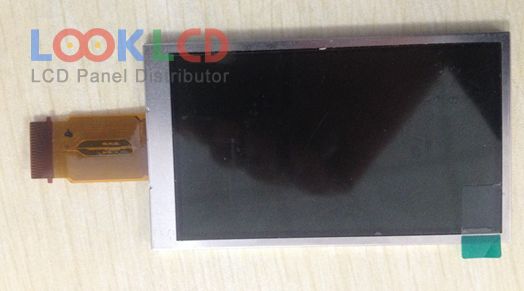

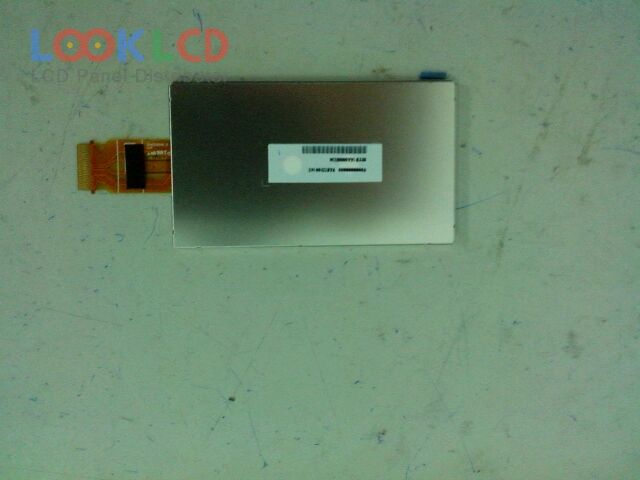

| PartNumber | 990000006 |
| Značka | TPO |
| Velikost | 3.0 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 250 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Serial RGB |
| značka panelu | TPO |
| panelový model | 990000006 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 3.0 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 65.31×36.84 mm |
| obrys | 75.31×43.44 mm |
| povrch | Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193140% |
| Doba odezvy | 5/11 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/50/60 (Min.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S1PWLEDWithout Driver |
| signálové rozhraní | Serial RGB (8-bit) + SPI, 39 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | DSC |
