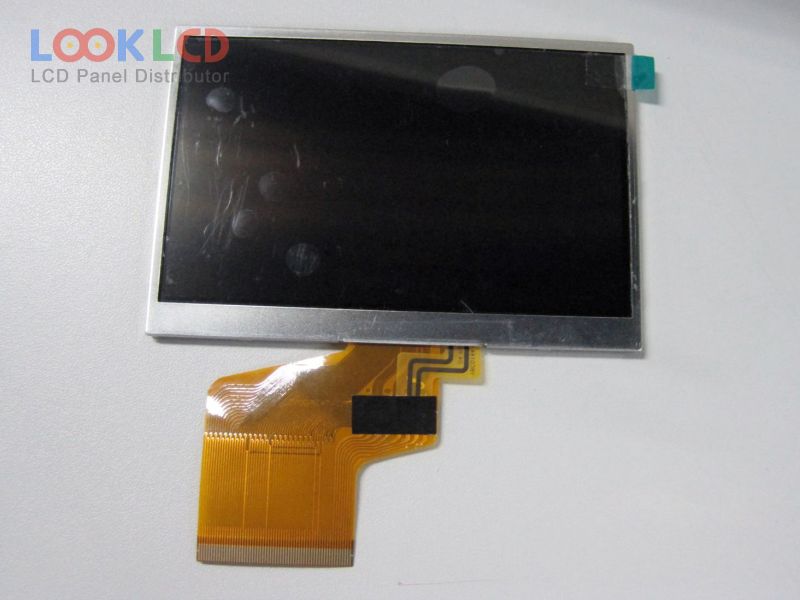

| PartNumber | 990000475 |
| Značka | TPO |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TPO |
| panelový model | 990000475 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | Normally Black, Transmissive |
| aktivní oblast | 93.6×56.16 mm |
| obrys | 100.6×68.45 mm |
| povrch | |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 30/10 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 8S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| vstupní napětí | 3.3/5/-5V (Typ.)(VCC/AVDP/AVDN) |
| aplikace | PND |
