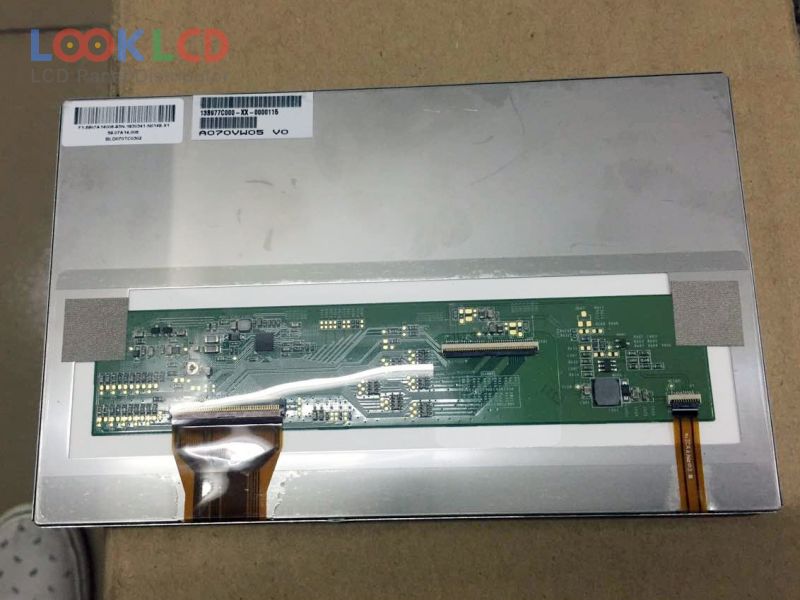

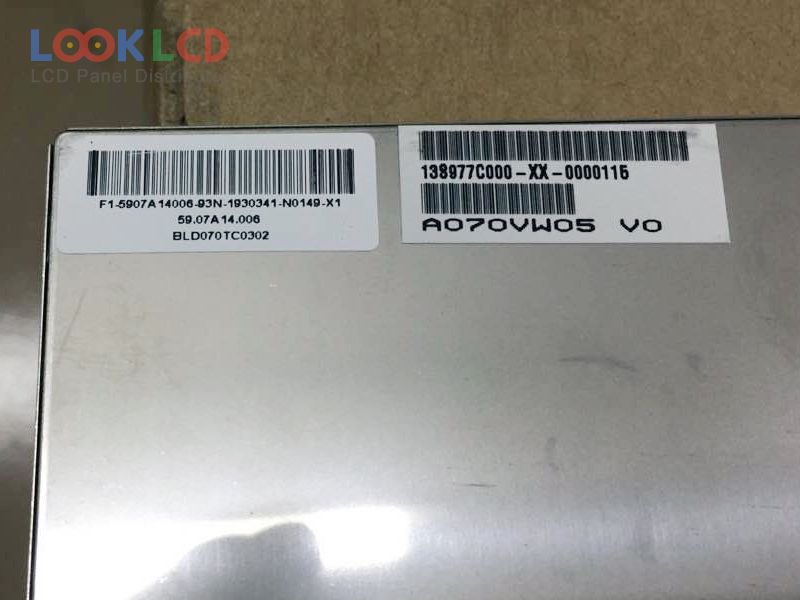

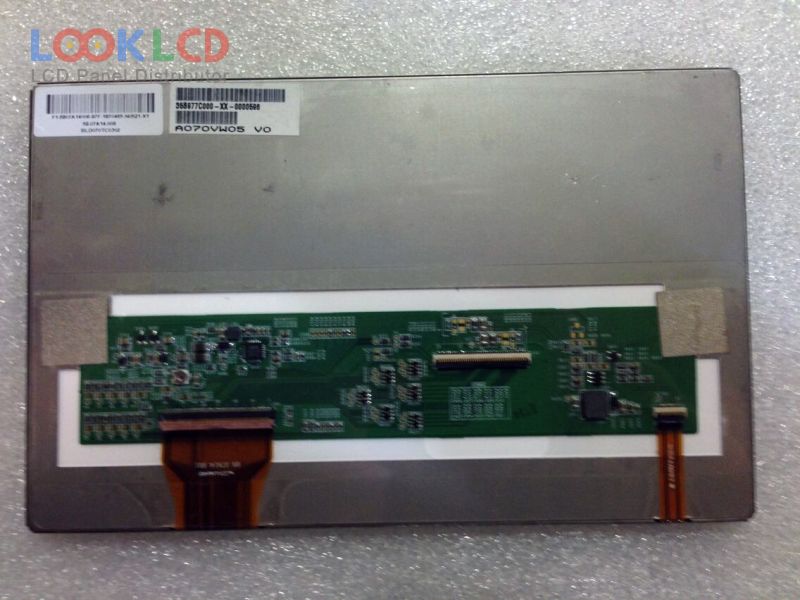

| PartNumber | A070VW05 V0 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 375 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | A070VW05 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×5.77 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 375 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 12/18 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/45/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| rohs: | |
| aplikace | CNS |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| A070VW08 V0 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| C058GW01 V0 | AUO | 5.8 | 400×240 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| DLC0700BZG-7 | Other | 7.0 | 800×480 |
| LQ050T5DW02 | SHARP | 5.0 | 400×240 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| LTA070B792F | TOSHIBA | 7.0 | 800×480 |
| PA080XS4 | E Ink | 7.9 | 480×468 |
