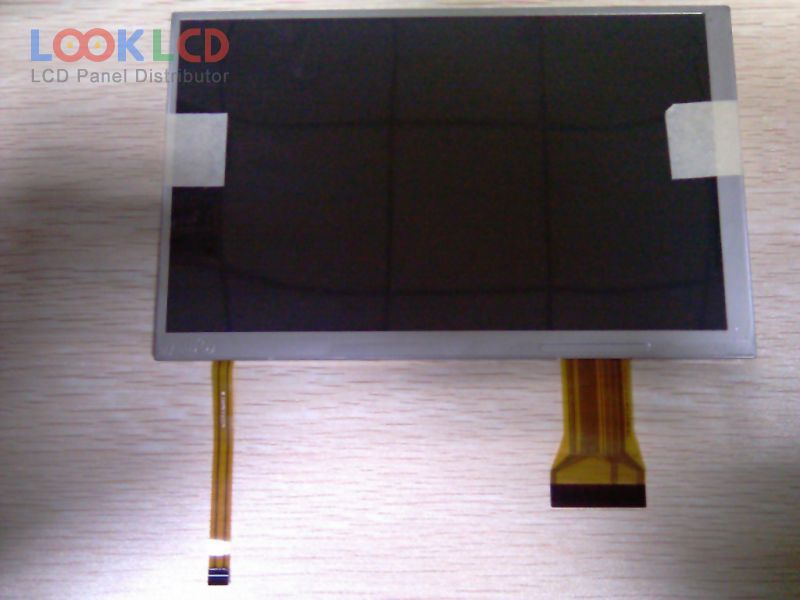

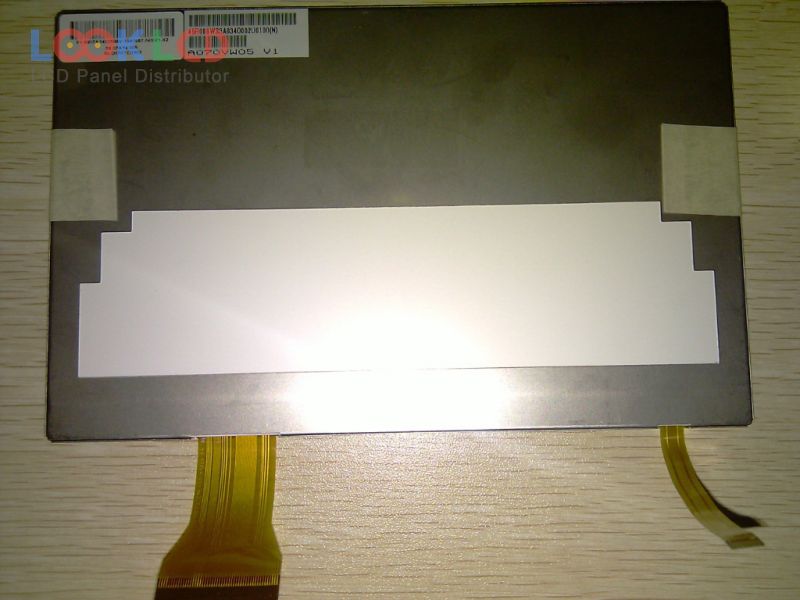

| PartNumber | A070VW05 V1 |
| Značka | AUO |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 375 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | A070VW05 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×4.37 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 375 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 12/18 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S9PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 50 pins |
| vstupní napětí | 3.3/3.3/11/18/-8V (Typ.)(VDDIO/GVDDIO/AVDD/VGH/VGL) |
| rohs: | |
| aplikace | CNS |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW08 V0 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| 70WVW1T | SII | 7.0 | 800×480 |
| A070FW01 | AUO | 7.0 | 480×234 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| C080VW03 V0 | AUO | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
