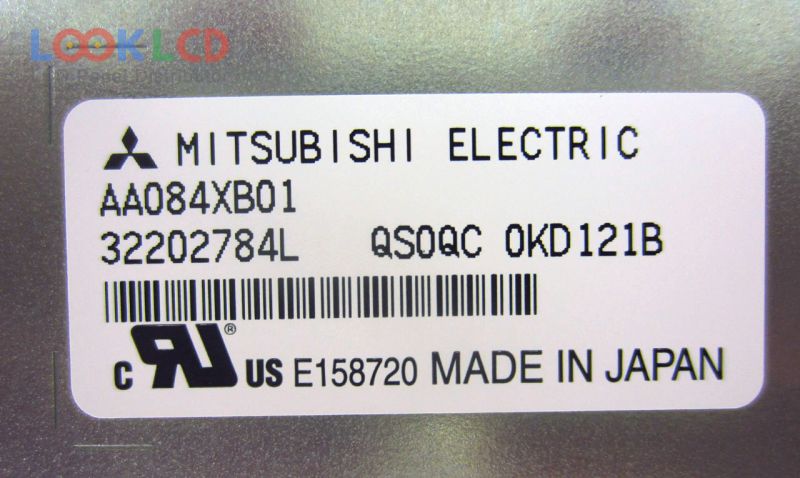

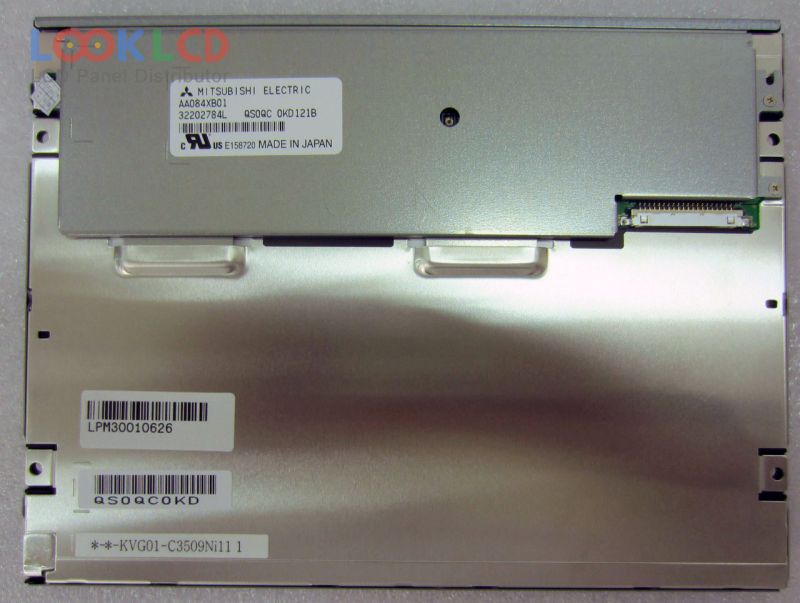

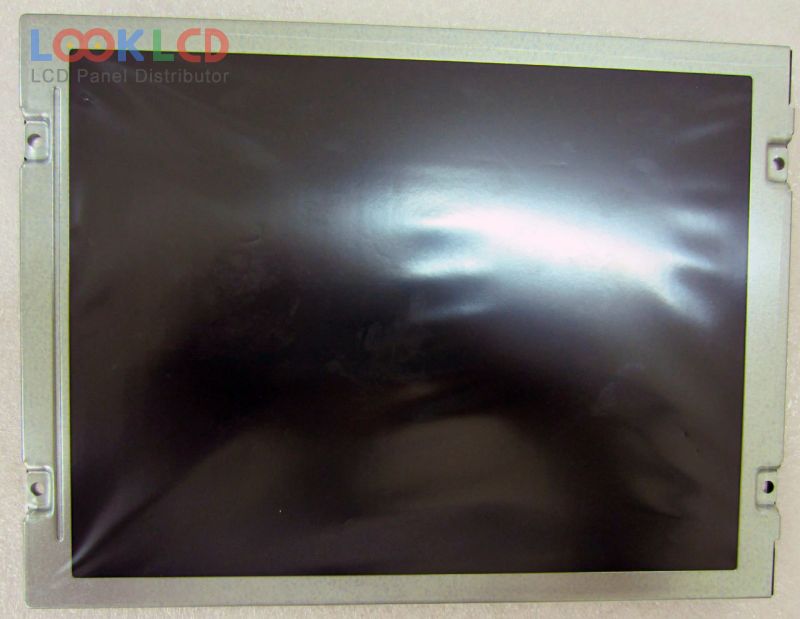

| PartNumber | AA084XB01 |
| Značka | Mitsubishi |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 500 |
| CR | 600:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | Mitsubishi |
| panelový model | AA084XB01 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.496×127.872 mm |
| obrys | 199.5×149 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 8-bit), CIE193140% |
| Doba odezvy | 4/12(Typ.)(Tr/Td) |
| úhel pohledu | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 stringsWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| AA084SA01 | Mitsubishi | 8.4 | 800×600 |
| AA084SB01 | Mitsubishi | 8.4 | 800×600 |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA084SC01 | Mitsubishi | 8.4 | 800×600 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| AA084VB02 | Mitsubishi | 8.4 | 640×480 |
| AA084VC03 | Mitsubishi | 8.4 | 640×480 |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| AA084XE11 | Mitsubishi | 8.4 | 1024×768 |
| AA141TC01 | Mitsubishi | 14.1 | 1280×800 |
| AA150XN09 | Mitsubishi | 15.0 | 1024×768 |
| G170EG01 V1 | AUO | 17.0 | 1280×1024 |
| LM32015T | SHARP | 5.7 | 320×240 |
| LQ084S3LG02 | SHARP | 8.4 | 800×600 |
| LQ12X12 | SHARP | 12.1 | 1024×768 |
| LQ190N1LW01 | SHARP | 19.0 | 1680×1050 |
| MD400F640PD5 | Panasonic | 9.8 | 640×400 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
| TX31D32VM2AAA | KOE | 12.1 | 800×600 |
