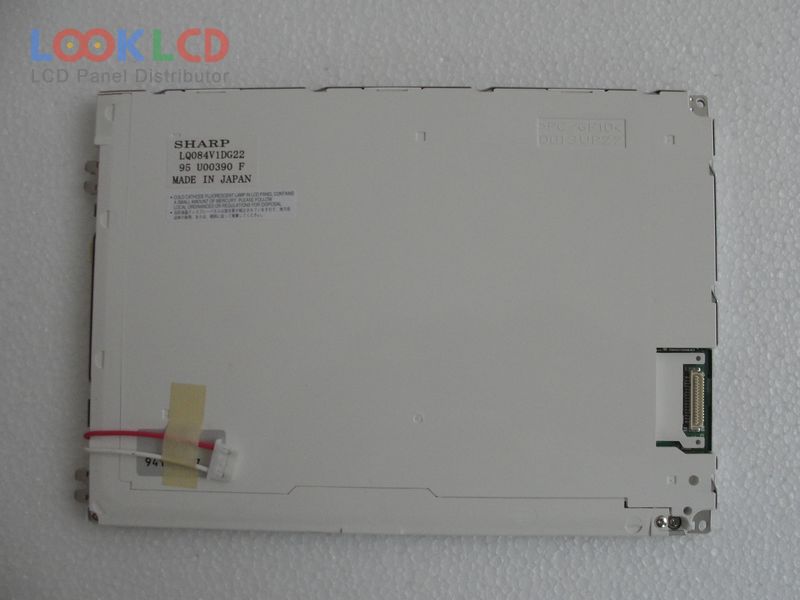

| PartNumber | LQ084V1DG22 |
| Značka | SHARP |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 300 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ084V1DG22 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.88×129.6 mm |
| obrys | 216×152.4 mm |
| povrch | Antiglare (Haze 28%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20/40 (Typ.)(Tr/Td) |
| úhel pohledu | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFL |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 31 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VCC) |
| aplikace | IA |
