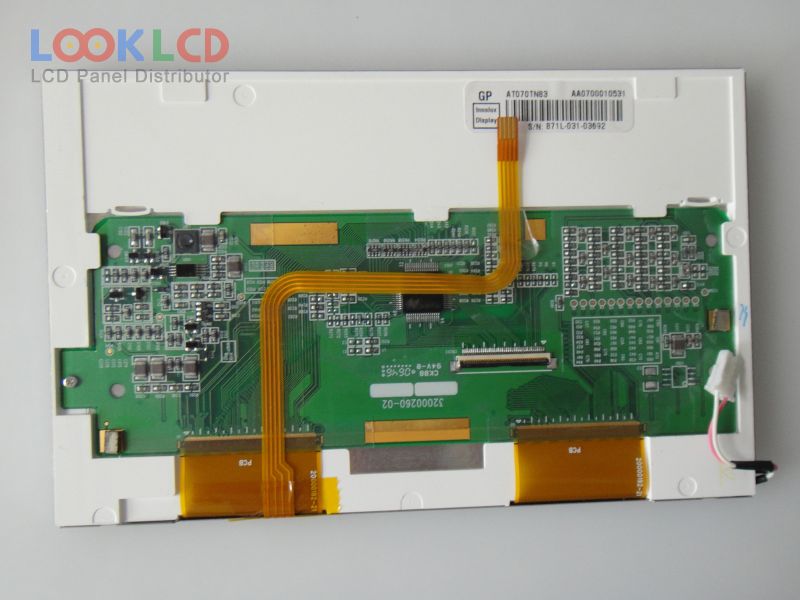

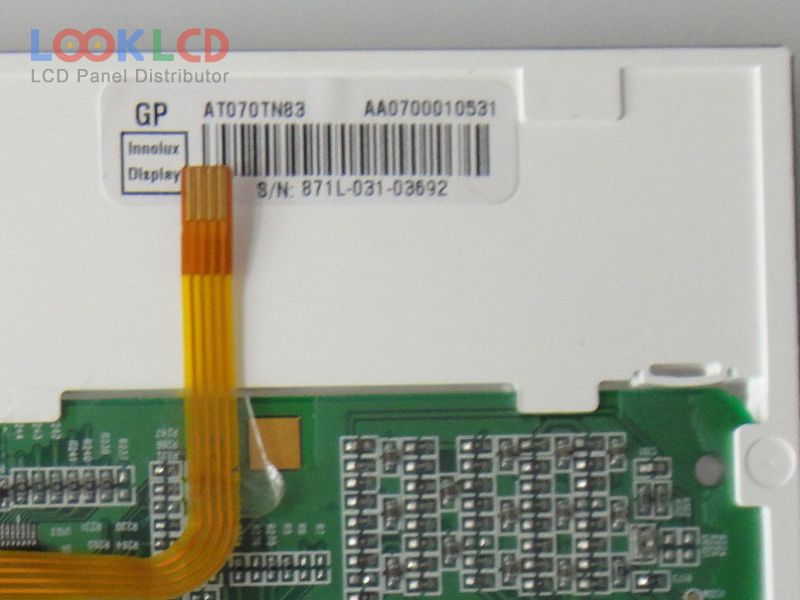

| PartNumber | AT070TN83 TP |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 240 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | INNOLUX |
| panelový model | AT070TN83 TP |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×6.8 mm |
| povrch | Antiglare |
| jas | 240 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S9PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| A065VL01 V1 | AUO | 6.5 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| EE070NA-01D | Innolux | 7.0 | 1024×600 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LTN089NT01 | Samsung | 8.9 | 1024×600 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
