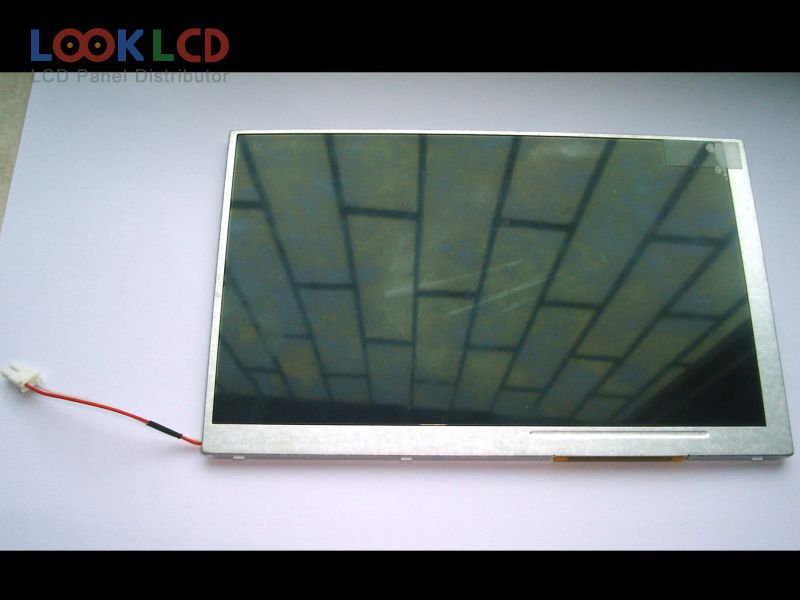

| PartNumber | LW700AT9009 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 250 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | ChiHsin |
| panelový model | LW700AT9009 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104.4×5.5 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193145% |
| Doba odezvy | 5/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S5PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 8-bit), 60 pins |
| vstupní napětí | 3.3/12.0/18.0/-7.0V (Typ.)(Vcc/AVDD/VGH/VGL) |
| aplikace | MP4 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070PFW3-C01 | HannStar | 7.0 | 1024×600 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| PW070NS1W2 | E Ink | 7.0 | 480×320 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| LB070WV6-TD08 | LG Display | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
