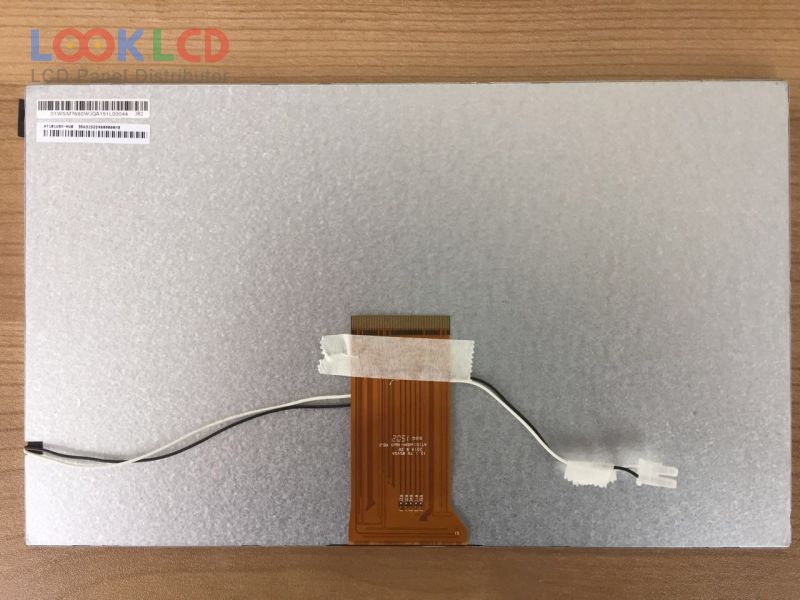

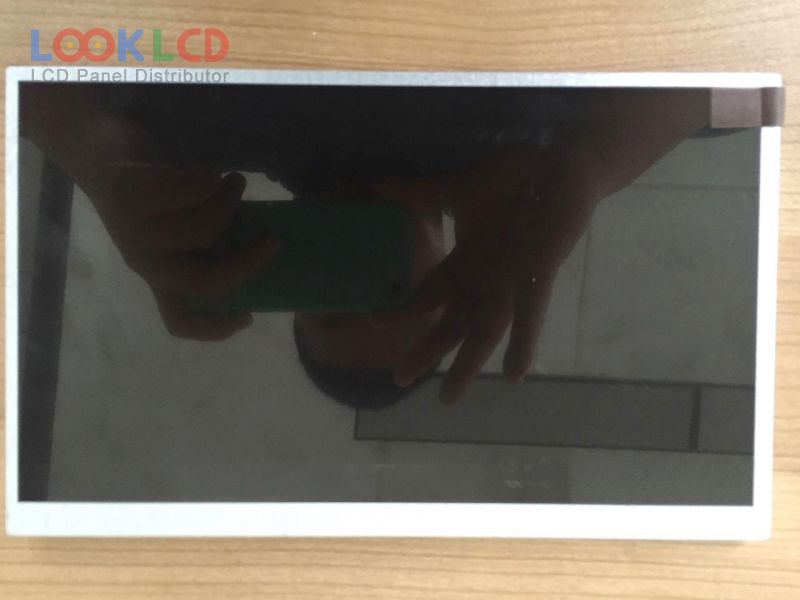

| PartNumber | AT101WSM-NW0-3800(3900) |
| Značka | BOE |
| Velikost | 10.1 |
| aplikace | CNS |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 500 |
| CR | 600:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | BOE |
| panelový model | AT101WSM-NW0-3800(3900) |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222.72×125.28 mm |
| obrys | 235×143×4.8 mm |
| povrch | Antiglare (Haze 25%) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Tf) |
| úhel pohledu | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 60 pins |
| vstupní napětí | 3.3/9.6V (Typ.)(VDD/AVDD) |
| aplikace | CNS |
