| PartNumber | HSD050I9W1-A00 |
| Značka | HannStar |
| Velikost | 5.0 |
| aplikace | CNS |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | HannStar |

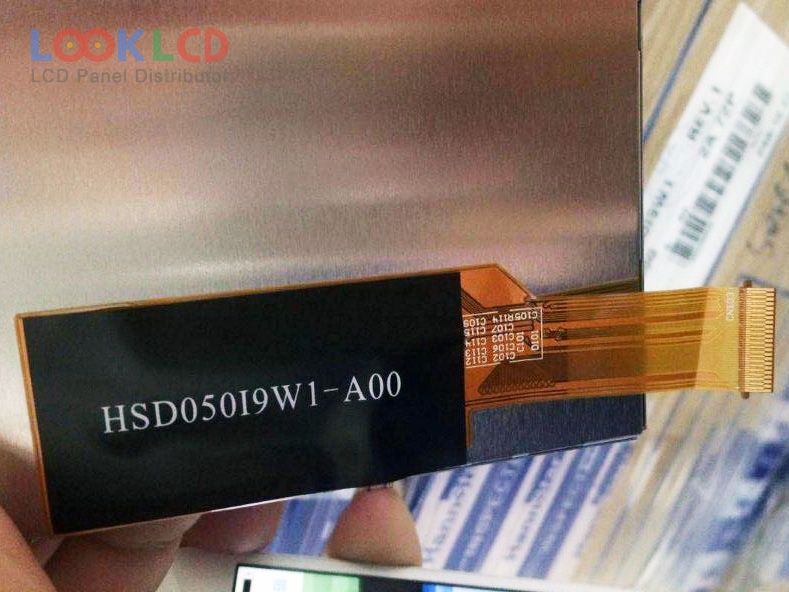

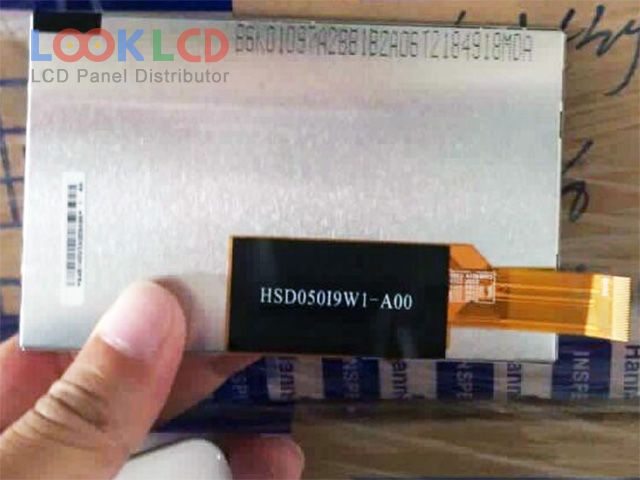

| panelový model | HSD050I9W1-A00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 110.88×62.832 mm |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | 16.7M (8-bit), CIE193145% |
| Doba odezvy | 15/17 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 45 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
