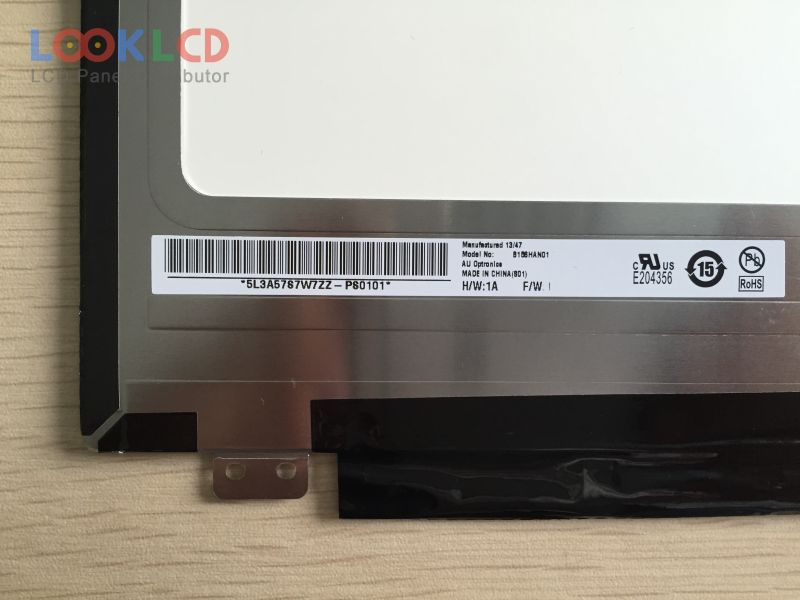

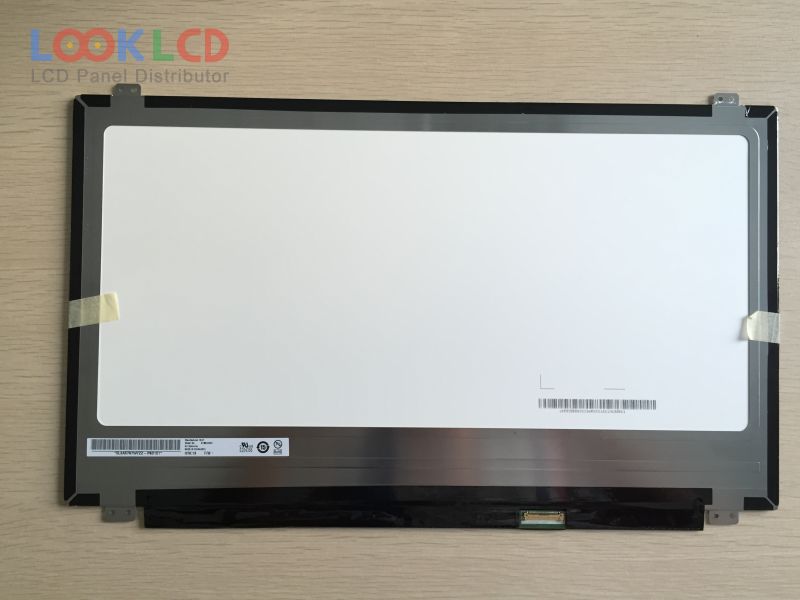

| PartNumber | B156HAN01.2 |
| Značka | AUO |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 300 |
| CR | 700:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | AUO |
| panelový model | B156HAN01.2 18 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 344.16×193.59 mm |
| obrys | 359.5×223.8×3.2 mm |
| tvarový styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193172% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (2 Lanes), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B156HAK01.0 | AUO | 15.6 | 1920×1080 |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| B156HTN01.1 | AUO | 15.6 | 1920×1080 |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| B201SW01 V0 | AUO | 20.1 | 1680×1050 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LT133X8-122 | Samsung | 13.3 | 1024×768 |
| LTM12C505T | TOSHIBA | 12.1 | 1024×768 |
| LTN154X3-L09-G | Samsung | 15.4 | 1280×800 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N140BGE-E43 | Innolux | 14.0 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
