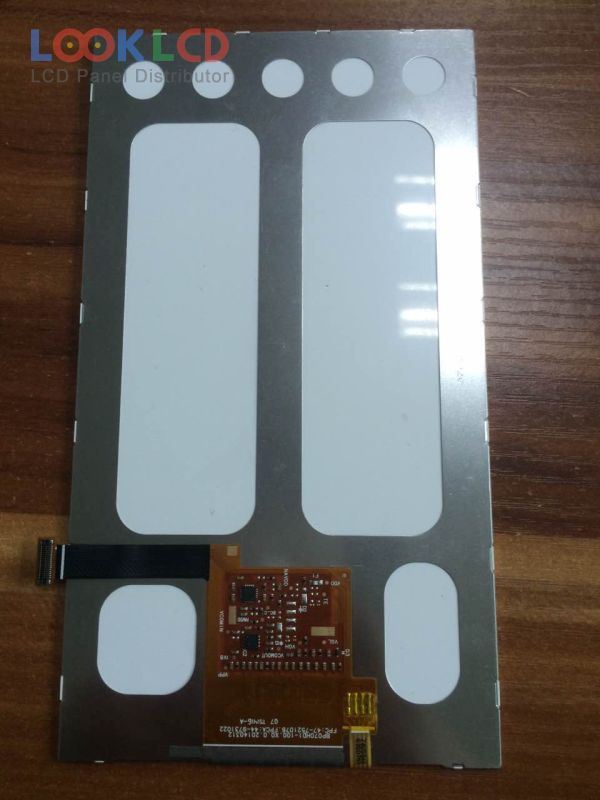

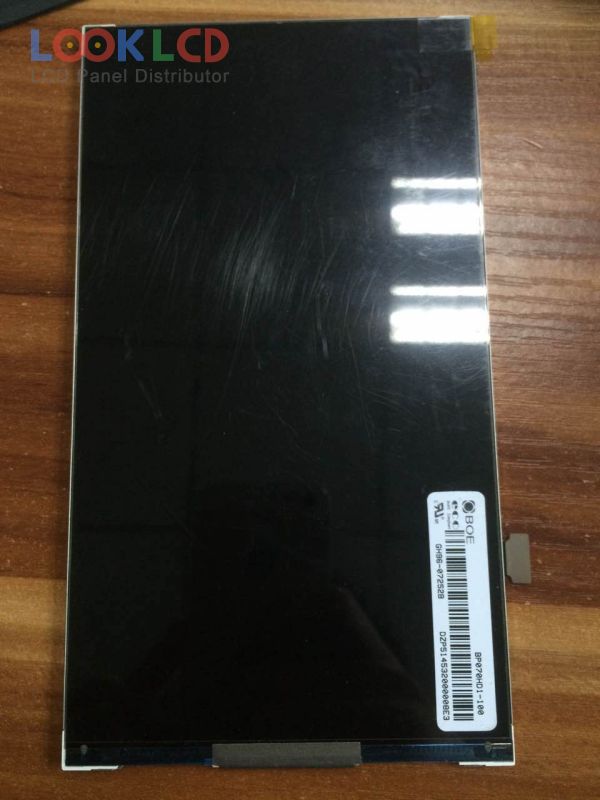

| PartNumber | BP070HD1-100 |
| Značka | BOE |
| Velikost | 7.0 |
| aplikace | PAD |
| Rozlišení | 720×1280 |
| Složení | LCM |
| Jas | 450 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | BOE |
| panelový model | BP070HD1-100 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 720(RGB)×1280 , WXGA |
| zobrazovací mód | PLS, Normally Black, Transmissive |
| aktivní oblast | 87.264×155.136 mm |
| obrys | 91.264×164.736 mm |
| povrch | Hard coating (2H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193155% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S3PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 34 pins |
| vstupní napětí | 1.8/3.3V (Typ.)(VCC/VDD) |
| aplikace | PAD |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| BP070HD1-100 | BOE | 7.0 | 720×1280 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LTA070B070F | TOSHIBA | 7.0 | 800×480 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| PW070NS1W2 | E Ink | 7.0 | 480×320 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| LTL075PL01-001 | Samsung | 7.5 | 1050×1400 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
