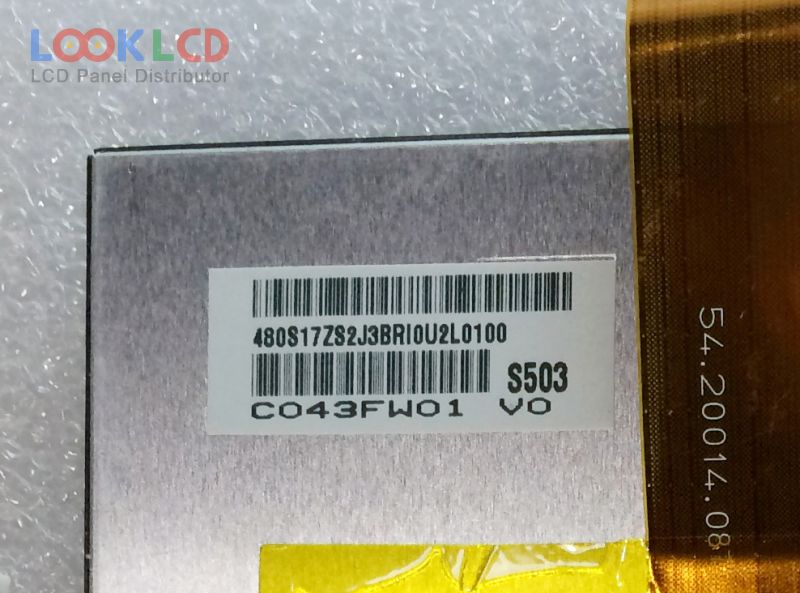

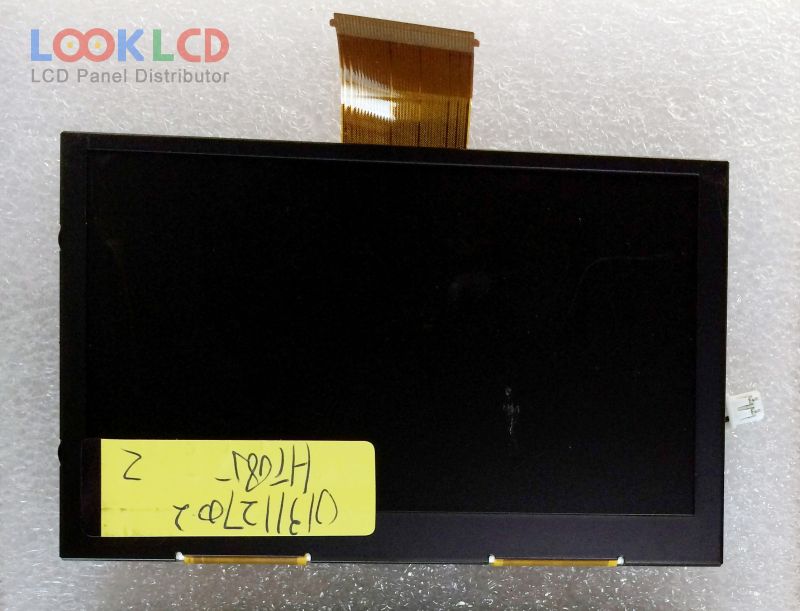

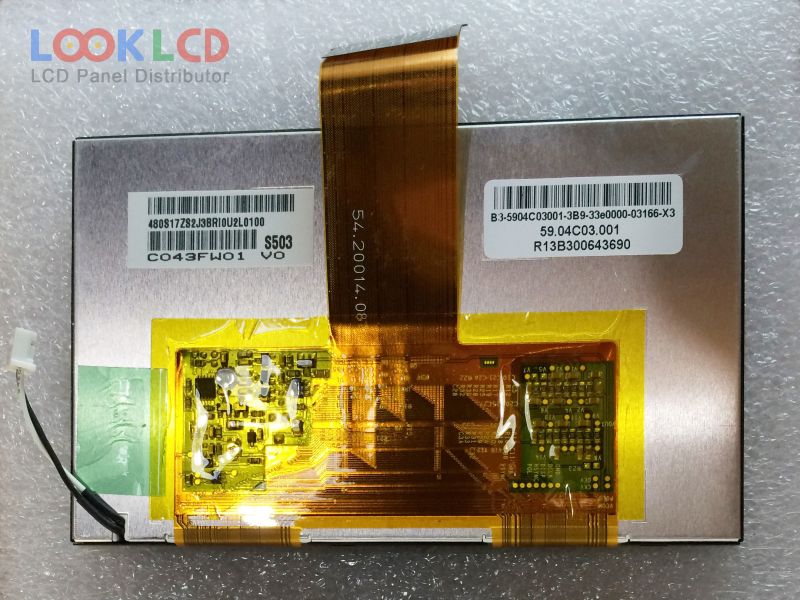

| PartNumber | C043FW01 V0 |
| Značka | AUO |
| Velikost | 4.3 |
| aplikace | CNS |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 700 |
| CR | 400:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | C043FW01 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 94.32×52.65 mm |
| obrys | 105.3×65.6 mm |
| povrch | |
| jas | 700 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Min.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
