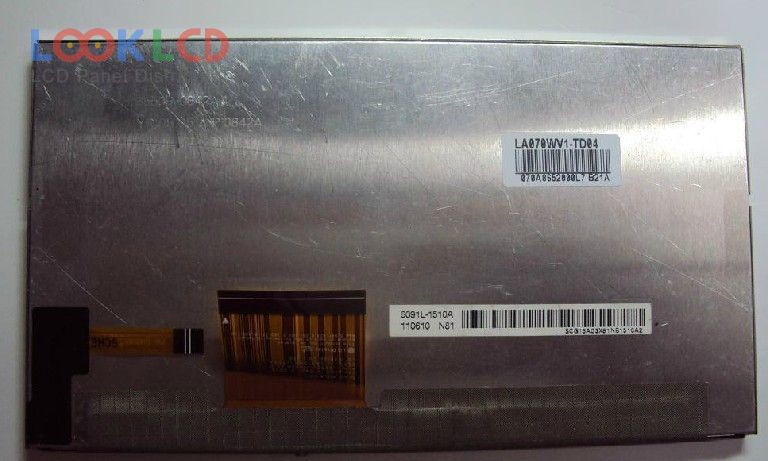

| PartNumber | LA070WV1-TD04 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | LG Display |
| panelový model | LA070WV1-TD04 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 156.24×82.368 mm |
| obrys | 167×93×7.5 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 5/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S4PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | CNS |
