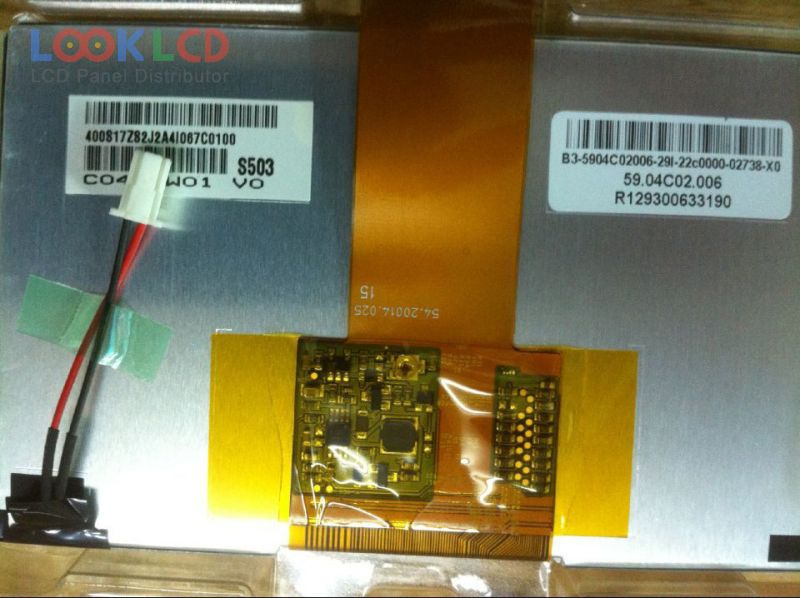

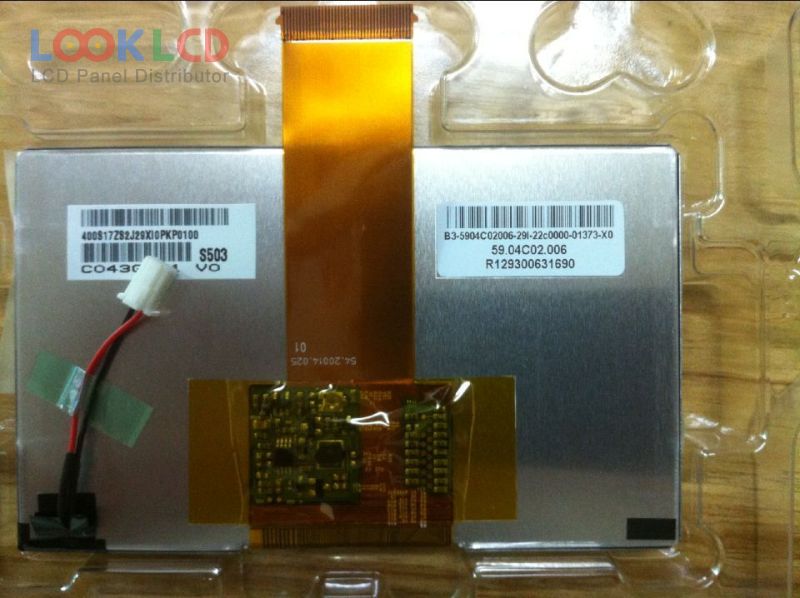

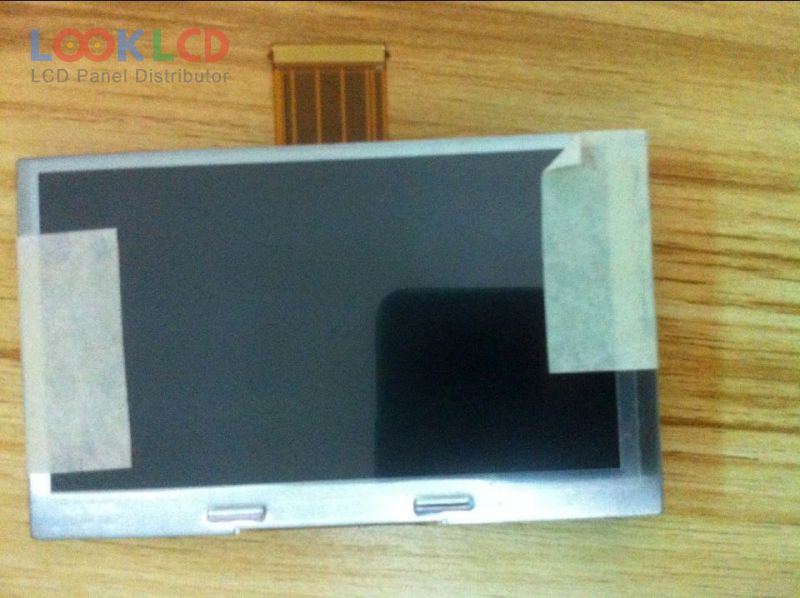

| PartNumber | C043GW01 V0 |
| Značka | AUO |
| Velikost | 4.3 |
| aplikace | CNS |
| Rozlišení | 400×234 |
| Složení | LCM |
| Jas | 600 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | C043GW01 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 400(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 94.8×52.65 mm |
| obrys | 107.7×65.6 mm |
| povrch | |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Min.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLED |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | CNS |
| 43WQW3H | SII | 4.3 | 480×272 |
| 43WQW4H | SII | 4.3 | 480×272 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| HSD043I9W1-A00-R0 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LR043JC211 | Innolux | 4.3 | 480×272 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| C070VW01 V0 | AUO | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| DLC0430EZG-11 | Other | 4.3 | 480×272 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| LA060N01-SD01 | LG Display | 6.0 | 720×272 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LB040Q04-TD01 | LG Display | 4.0 | 320×240 |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
