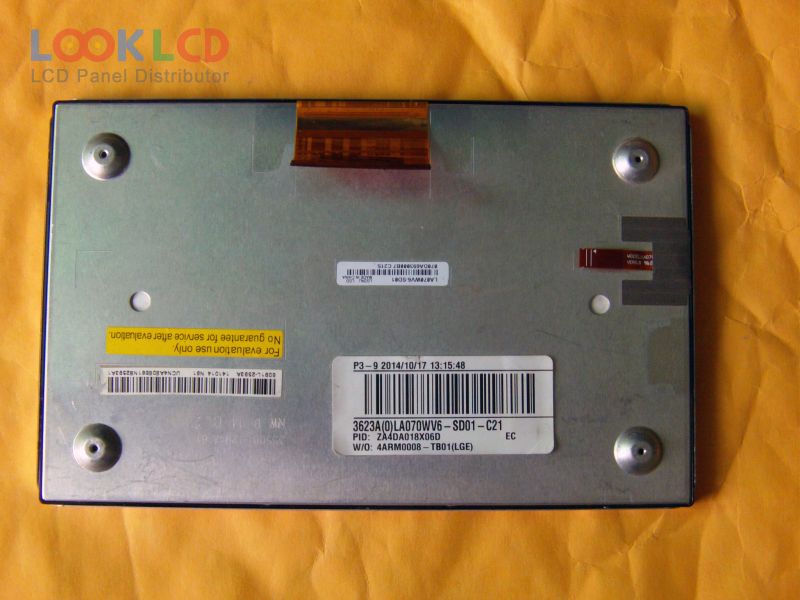

| PartNumber | LA070WV6-SD01 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 610 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | LG Display |
| panelový model | LA070WV6-SD01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 166.6×105.8×10.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 610 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193160% |
| Doba odezvy | 15/10 (Typ.)(Tr/Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 66 pins |
| vstupní napětí | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | CNS |
