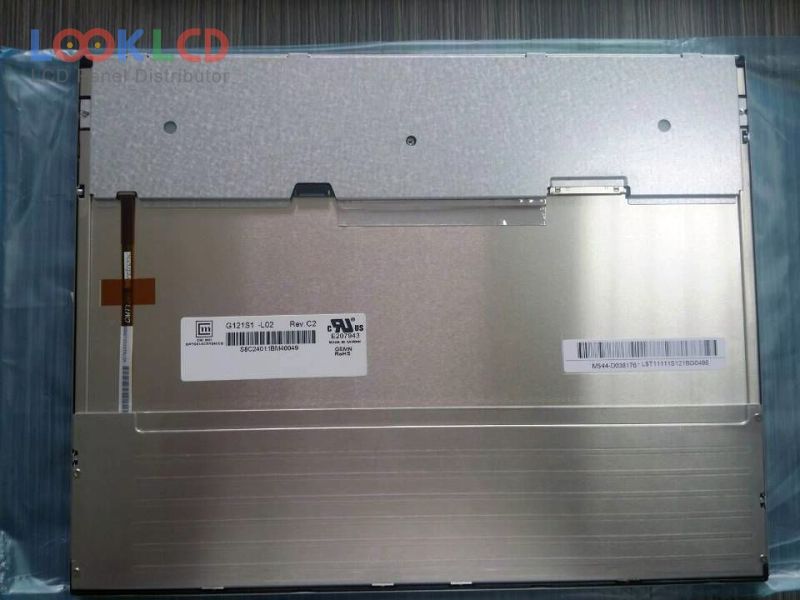

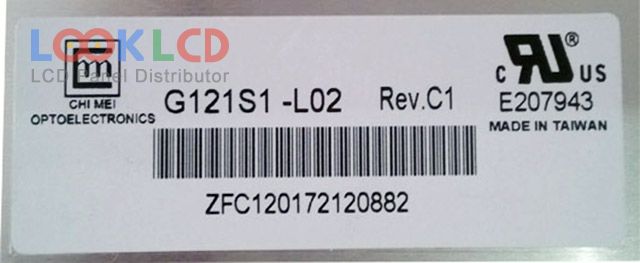

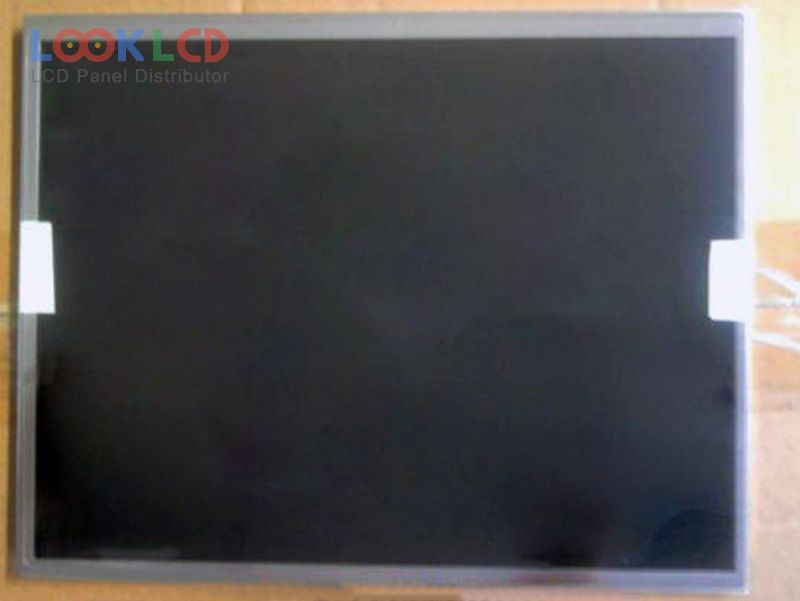

| PartNumber | G121S1-L02 |
| Značka | Innolux |
| Velikost | 12.1 |
| aplikace | CNS |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 600 |
| CR | 1500:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | G121S1-L02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | Super MVA, Normally Black, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 260.5×204×8.9 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 1500:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Doba odezvy | 13/12 (Typ.)(Tr/Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3/5.0V (Typ.) |
| aplikace | CNS |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| G121SN01 V0 | AUO | 12.1 | 800×600 |
| G121SN01 V1 | AUO | 12.1 | 800×600 |
| G121SN01 V3 | AUO | 12.1 | 800×600 |
| G121SN01 V4 | AUO | 12.1 | 800×600 |
| G121STN01.0 | AUO | 12.1 | 800×600 |
| HX121WX1-110 | HYDIS | 12.1 | 1280×800 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| TM121XG-02L10 | SANYO | 12.1 | 1024×768 |
| A061FW01 V0 | AUO | 6.1 | 480×234 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G070Y1-T01 | Innolux | 7.0 | 800×480 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LB040Q04-TD01 | LG Display | 4.0 | 320×240 |
| LB070WV3-SD01 | LG Display | 7.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
