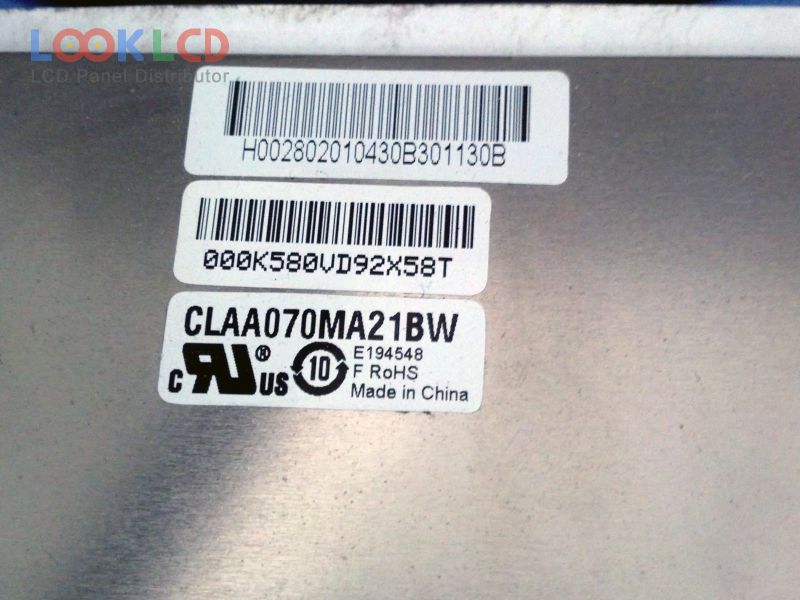

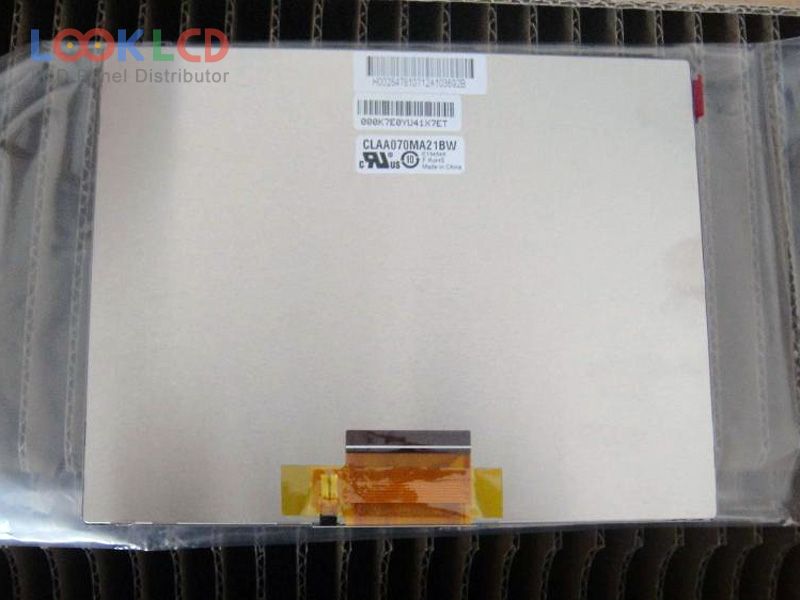

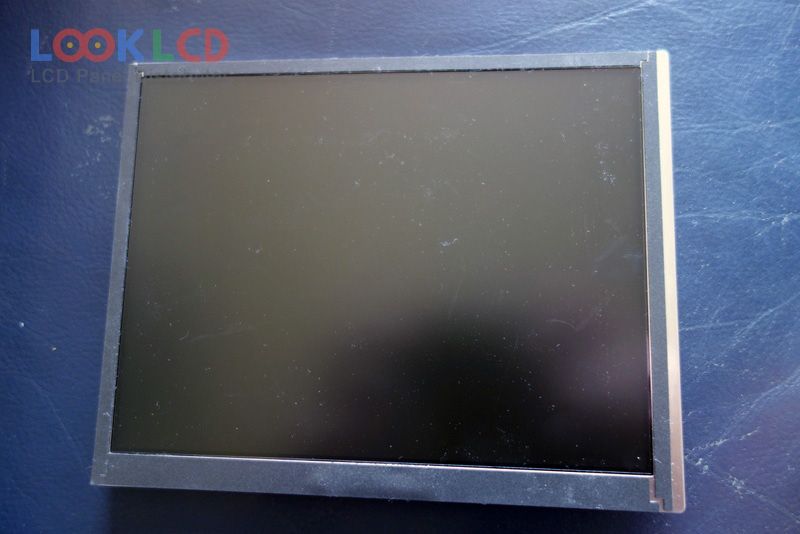

| PartNumber | CLAA070MA21BW |
| Značka | CPT |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 215 |
| CR | 500:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA070MA21BW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 141.6×106.2 mm |
| obrys | 156.4×122.25×3.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 215 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193142% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 50/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2S7PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 8-bit), 60 pins |
| vstupní napětí | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
