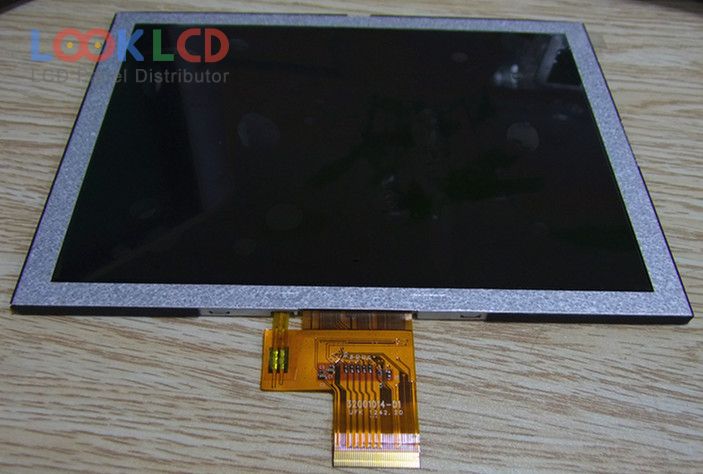

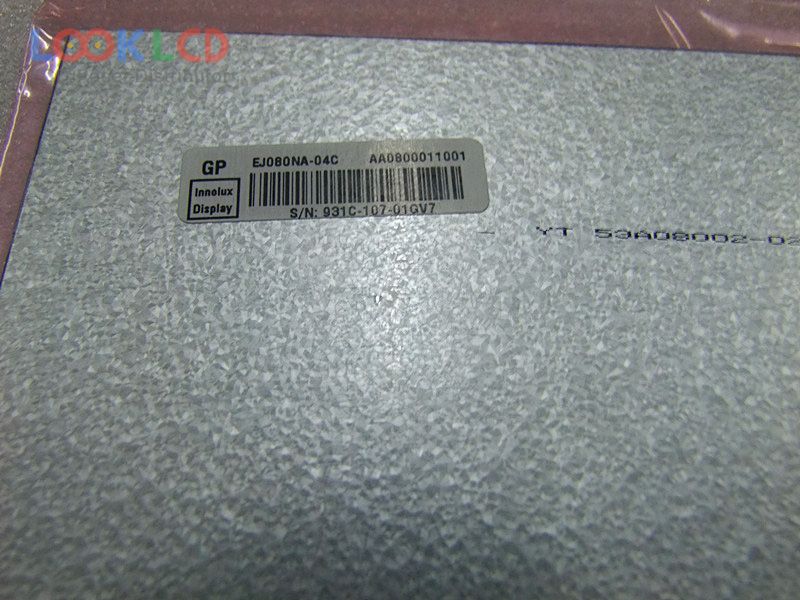

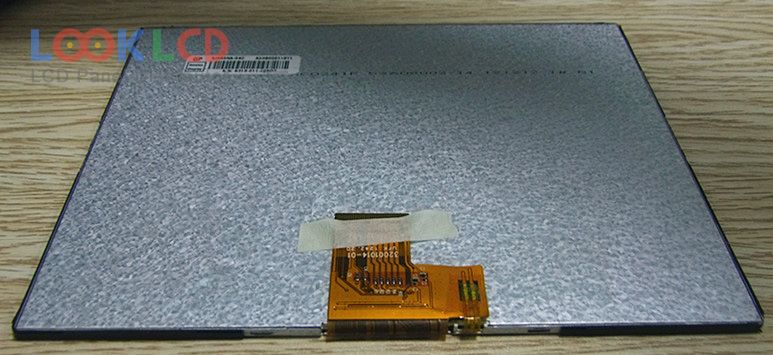

| PartNumber | EJ080NA-04C |
| Značka | Innolux |
| Velikost | 8.0 |
| aplikace | DPF |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 700:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | EJ080NA-04C |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 162.048×121.536 mm |
| obrys | 183×141 mm |
| povrch | Hard coating |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 6/14 (Typ.)(Tr/Td) |
| úhel pohledu | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupní napětí | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
