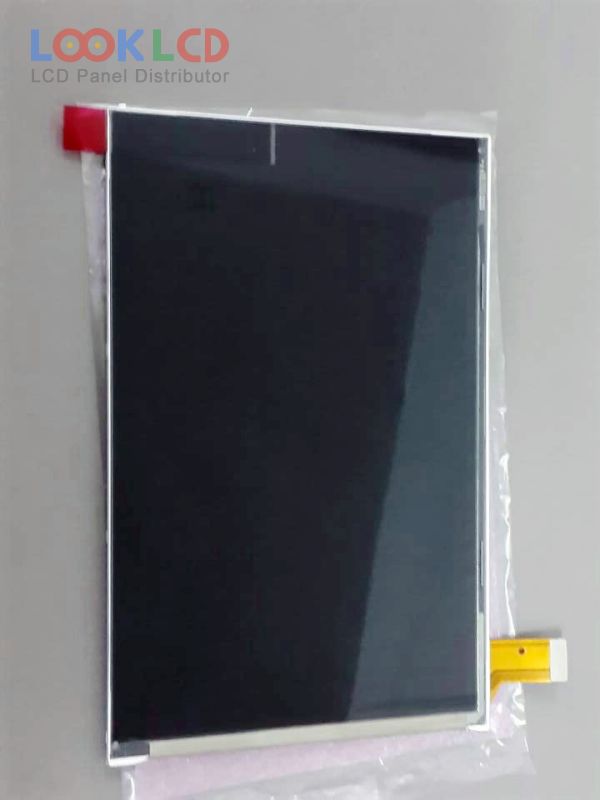

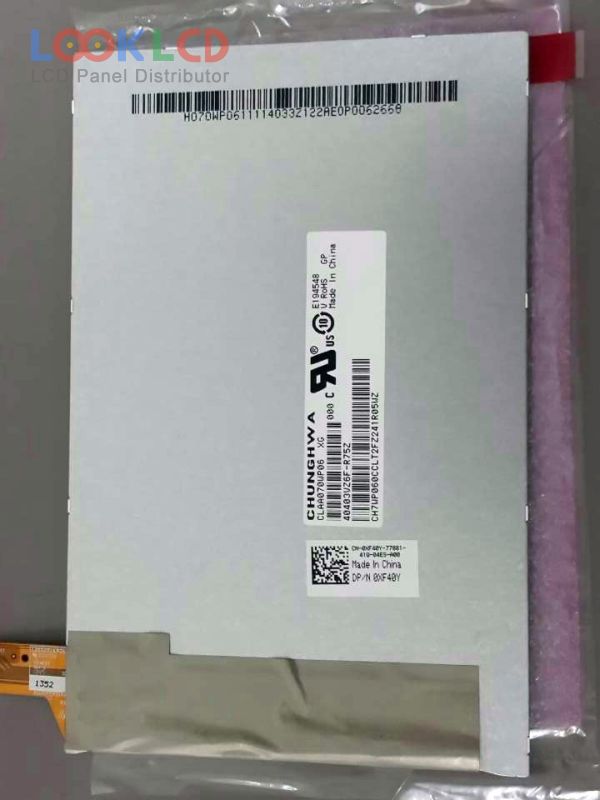

| PartNumber | CLAA070WP06 XG |
| Značka | CPT |
| Velikost | 7.0 |
| aplikace | PAD |
| Rozlišení | 800×1280 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | CPT |
| panelový model | CLAA070WP06 XG |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×1280 , WXGA |
| zobrazovací mód | HFFS, Normally Black, Transmissive |
| aktivní oblast | 94.2×150.72 mm |
| obrys | 104.32×161.67×4.15 mm |
| povrch | Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193160% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |

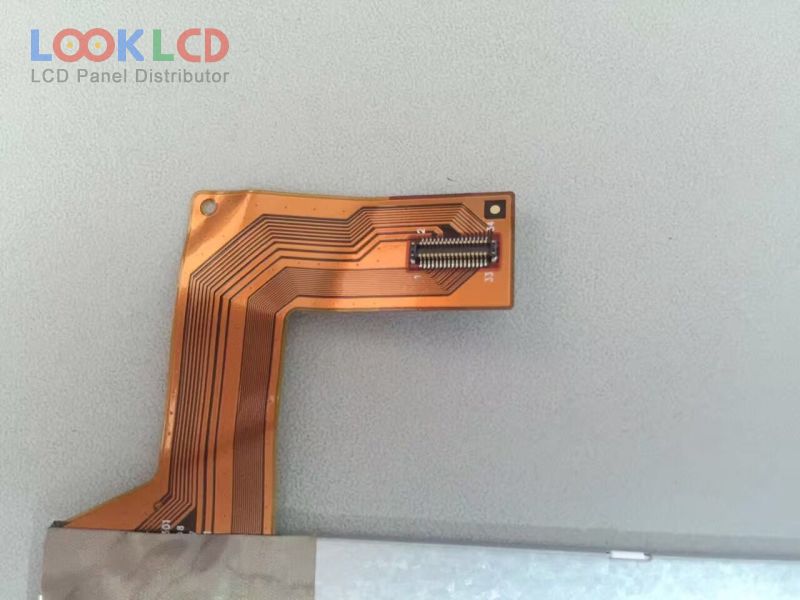

| signálové rozhraní | MIPI (4 data lanes), 34 pins |
| vstupní napětí | 1.8/3.3V (Typ.)(VCCI/VDDI) |
| aplikace | PAD |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| CLAA070LC0ECT | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
