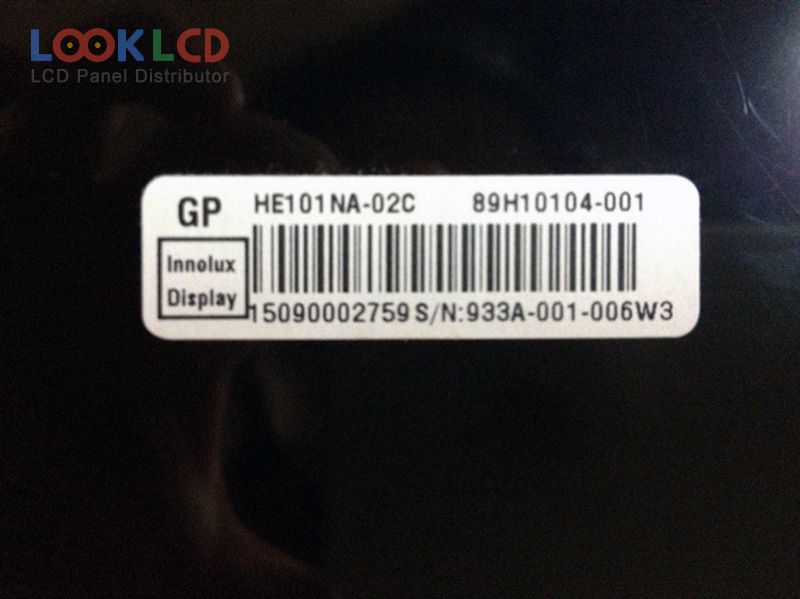

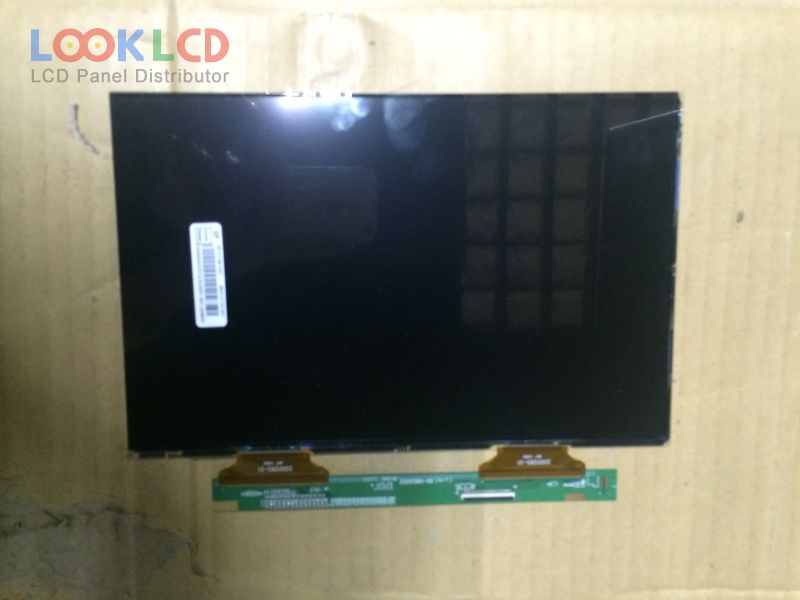

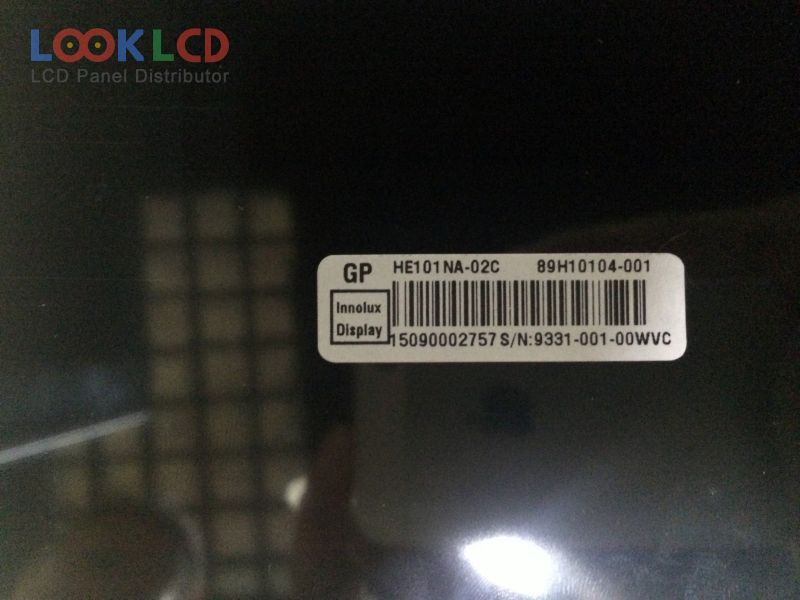

| PartNumber | HE101NA-02C |
| Značka | Innolux |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | CELL |
| Jas | 0 |
| CR | 700:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | TTL |
| značka panelu | CHIMEI INNOLUX |
| panelový model | HE101NA-02C |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 224.21×145×1.43 mm |
| povrch | Glare (Haze 0%) |
| hloubka skla | 0.50+0.50 mm |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 10/20 (Typ.)(Tr/Td) |
| úhel pohledu | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | PAD |
