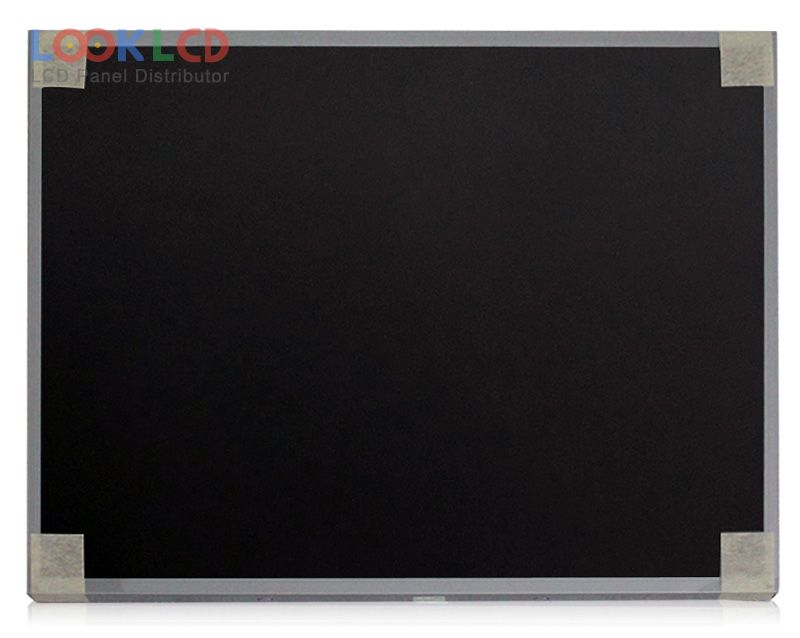

| PartNumber | CLAA170ES01E |
| Značka | CPT |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 300 |
| CR | 700:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CPT |
| panelový model | CLAA170ES01E 7 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 337.92×270.336 mm |
| obrys | 354.9×290.3×13.3 mm |
| povrch | Antiglare (Haze 25%) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193172% |
| Doba odezvy | 6 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| B170PW03 V4 | AUO | 17.0 | 1440×900 |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| CLAA170EA10 | CPT | 17.0 | 1280×1024 |
| CLAA170ES01E | CPT | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| LTN170BT10-001 | Samsung | 17.0 | 1440×900 |
| M170EU01 V0 | AUO | 17.0 | 1280×1024 |
| LM201U05-SLA3 | LG Display | 20.1 | 1600×1200 |
| LM215WF3-SDD1 | LG Display | 21.5 | 1920×1080 |
| LM220WE1-TLB3 | LG Display | 22.0 | 1680×1050 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LM250WF2-TLA1 | LG Display | 25.0 | 1920×1080 |
| LTM150XH-T01 | Samsung | 15.0 | 1024×768 |
| LTM170EU-A01 | Samsung | 17.0 | 1280×1024 |
| M170EG01 VD | AUO | 17.0 | 1280×1024 |
| M220Z1-L05 | Innolux | 22.0 | 1680×1050 |
| M236HJJ-L30 | Innolux | 23.6 | 1920×1080 |
