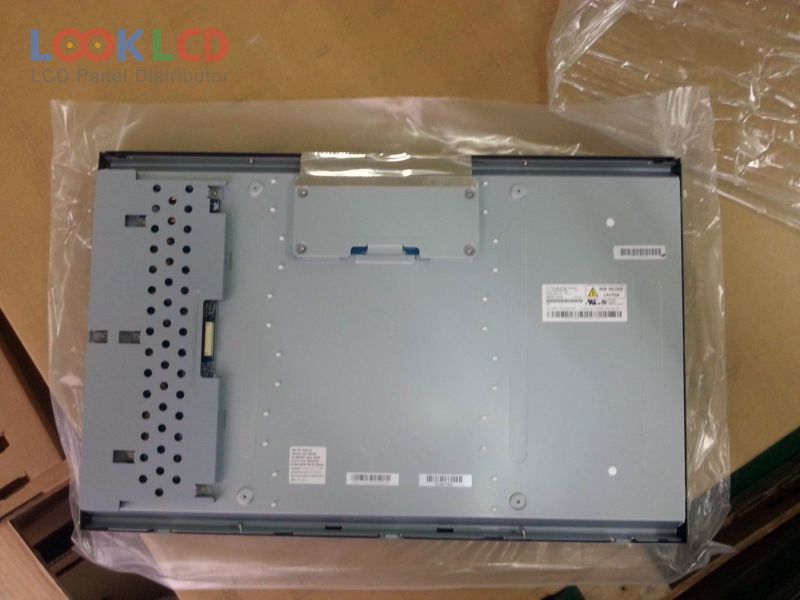

| PartNumber | CLAA260WU09 |
| Značka | CPT |
| Velikost | 25.5 |
| aplikace | DMPC |
| Rozlišení | 1920×1200 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CPT |
| panelový model | CLAA260WU09 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 25.5 inch |
| rozlišení | 1920(RGB)×1200 , WUXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 550.08×343.8 mm |
| obrys | 582×375.6 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE1931100% |
| Doba odezvy | 2/3 (Typ.)(Tr/Td); 3 (Typ.)(G to G) |
| úhel pohledu | 85/85/85/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
