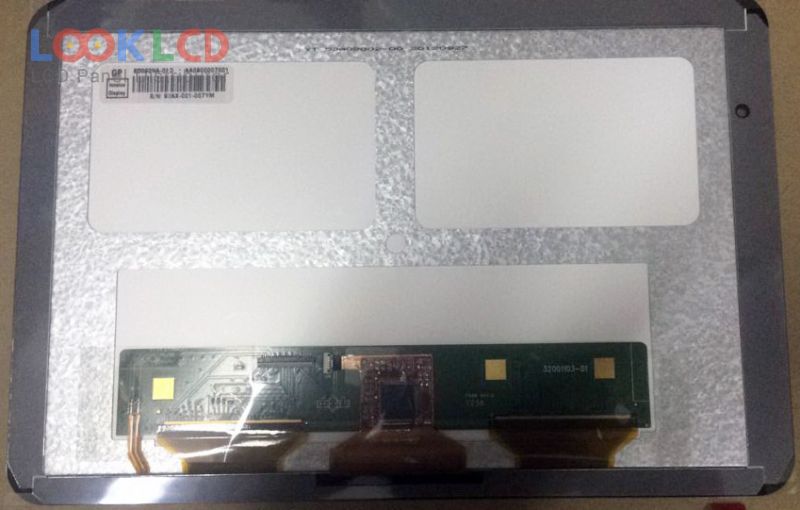

| PartNumber | ED090NA-01D |
| Značka | Innolux |
| Velikost | 9.0 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | Assembly |
| Jas | 200 |
| CR | 700:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | ED090NA-01D |
| typ panelu | a-Si TFT-LCD , Assembly |
| velikost panelu | 9.0 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| aktivní oblast | 193.92×121.2 mm |
| obrys | 235.12×156.4×7.84 mm |
| povrch | Hard coating (7H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| úhel pohledu | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 51 pins |
| vstupní napětí | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | PAD |
