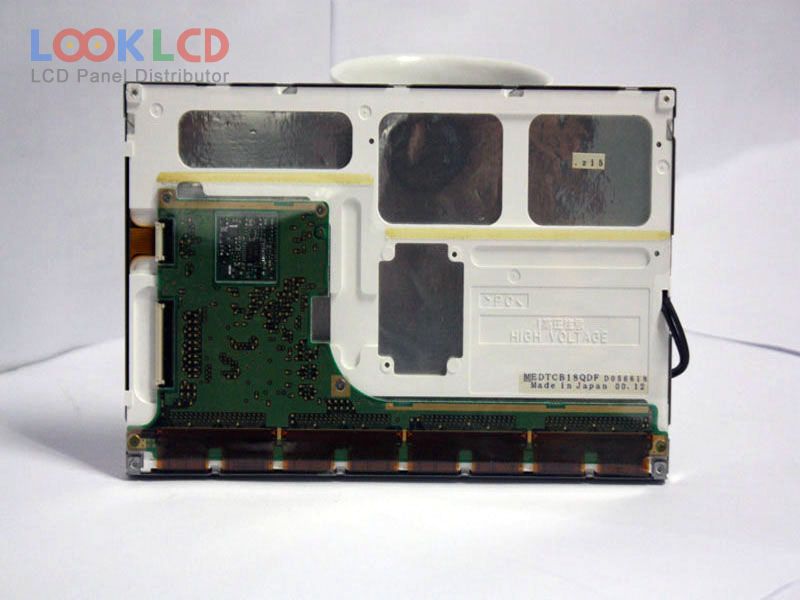

| PartNumber | EDTCB18QEF |
| Značka | TOSHIBA |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 150:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | Toshiba Matsushita |
| panelový model | EDTCB18QEF |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 171×109.5×11.5 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 150:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20/36 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | CNS |
