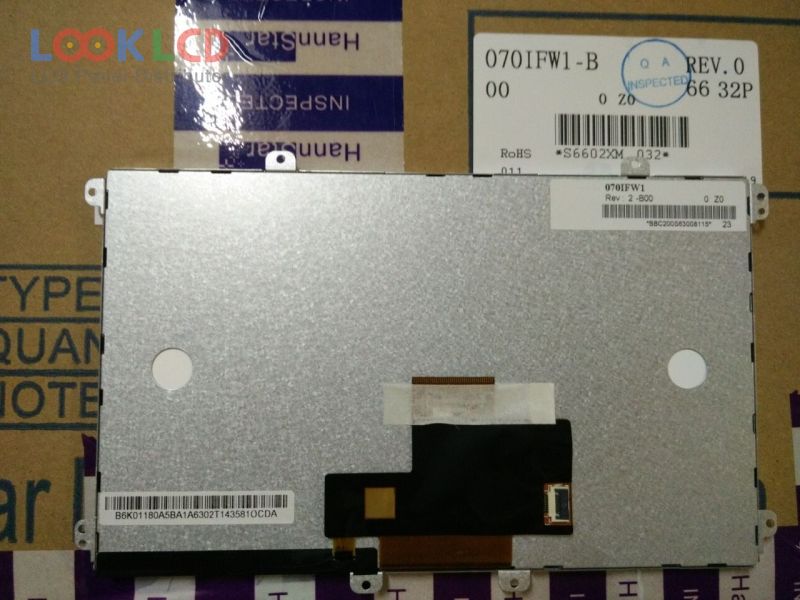

| PartNumber | HSD070IFW1-B00 |
| Značka | HannStar |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 600 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD070IFW1-B00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 153.6×86.64 mm |
| povrch | Antiglare |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 4/12 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/70/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S12PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3/3.3V (Typ.)(VDD/VBAT) |
| aplikace | CNS |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| CLAA043JE01CW | CPT | 4.3 | 480×272 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
