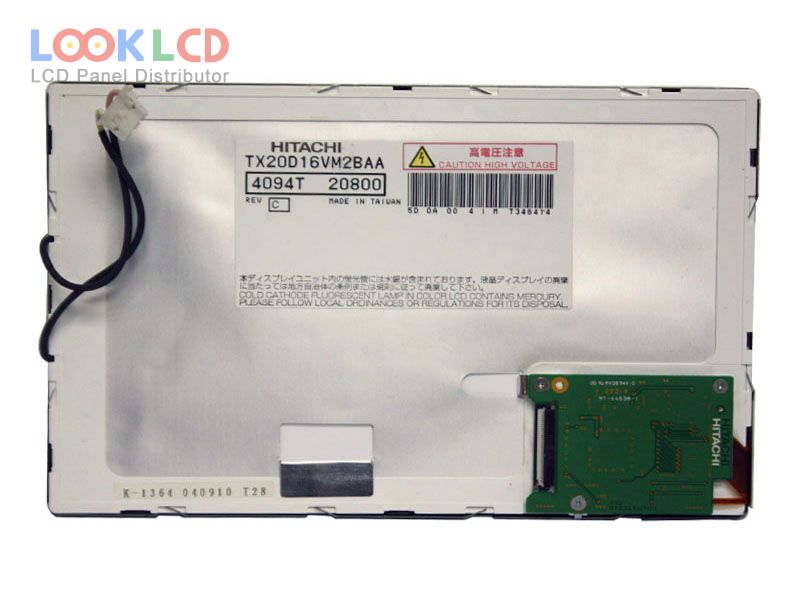

| PartNumber | TX20D16VM2BAA |
| Značka | KOE |
| Velikost | 8.0 |
| aplikace | IA |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 200:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | HITACHI |
| panelový model | TX20D16VM2BAA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 174×104.4 mm |
| obrys | 189×120 mm |
| povrch | Antiglare |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 200:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 20/10 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
