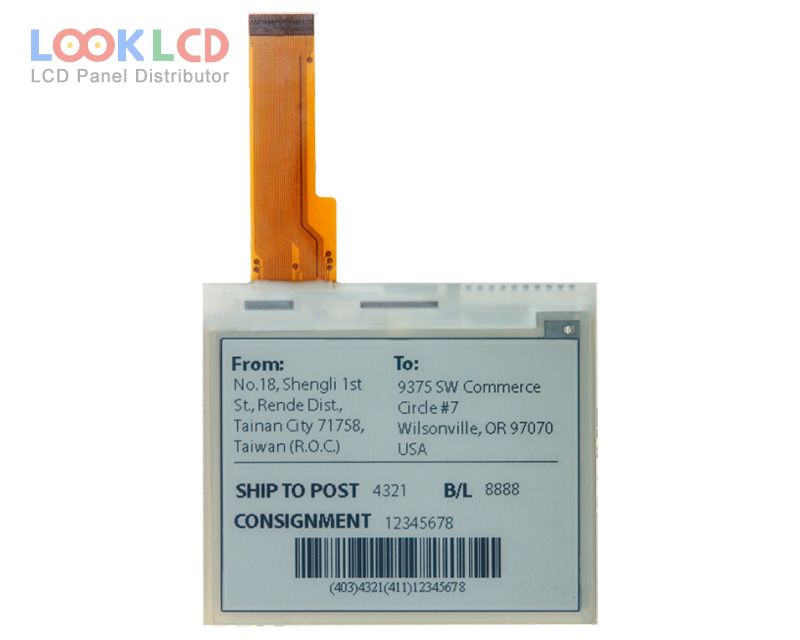

| PartNumber | EQ030AS181 |
| Značka | PDI |
| Velikost | 3.0 |
| aplikace | EPT |
| Rozlišení | 320×240 |
| Složení | EPD |
| Jas | |
| CR | |
| Barvy | Monochrome |
| Podsvícení | No B/L |
| Rozhraní | SPI |
| značka panelu | PDI |
| panelový model | EQ030AS181 |
| typ panelu | EPD , EPD |
| velikost panelu | 3.0 inch |
| rozlišení | 320×240 , QVGA |
| aktivní oblast | 60.96×45.72 mm |
| obrys | 69.2×60.4×1.2 mm |
| povrch | Antiglare |
| jas | |
| kontrastní poměr | 10:1 (Typ.)(Reflective) |
| zobrazit barvy | Monochrome (1-bit) |
| úhel pohledu | |
| signálové rozhraní | SPI, 10 pins |
| vstupní napětí | 3.3/3.3V (Typ.)(VDD/VCC) |
| aplikace | EPT |
| 30WQF0H | SII | 3.0 | 240×400 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A030DN01 VC | AUO | 3.0 | 320×240 |
| A030DW01 V1 | AUO | 3.0 | 320×240 |
| CLAA030HA22DE | CPT | 3.0 | 960×480(dot) |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| LS030Y7PW01 | SHARP | 3.0 | |
| LTM030DH60 | TOSHIBA | 3.0 | 240×427 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| TM030ZDHG01 | Tianma | 3.0 | 320×320 |
| EK014AS014 | PDI | 1.44 | 128×96 |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| ET044AS013 | PDI | 4.4 | 400×300 |
| EW074AT012 | PDI | 7.4 | 480×800 |
| EW074BT011 | PDI | 7.4 | 480×800 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS013B7DH05 | SHARP | 1.26 | 144×168 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
