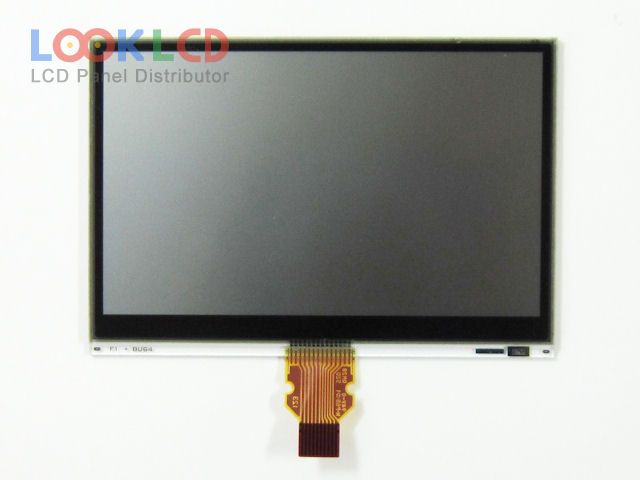

| PartNumber | LS027B4DH01 |
| Značka | SHARP |
| Velikost | 2.7 |
| aplikace | EPT |
| Rozlišení | 400×240 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | Monochrome |
| Podsvícení | No B/L |
| Rozhraní | SPI |
| značka panelu | SHARP |
| panelový model | LS027B4DH01 |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 2.7 inch |
| rozlišení | 400×240 , WQVGA |
| zobrazovací mód | Reflective |
| aktivní oblast | 58.8×35.28 mm |
| obrys | 62.8×42.82 mm |
| povrch | Hard coating (3H) |
| jas | |
| kontrastní poměr | 14:1 (Typ.)(Reflective) |
| zobrazit barvy | Monochrome (1-bit) |
| Doba odezvy | 10/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/60/60 (Min.)(CR≥2)(L/R/U/D) |
| typ lampy | No B/L |
| signálové rozhraní | SPI, 10 pins |
| vstupní napětí | 5.0/5.0V (Typ.)(VDD/VDDA) |
| aplikace | EPT |
